Explore more for less
Built for outdoor work, this track system makes the most of 3-seater side-by-sides (400 to 700 CC). It provides the right traction and flotation for tough weather days at the ranch and during hunting season.
CAMSO Track System - X4S - Can-Am 7522-02-0687 is backordered and will ship as soon as it is back in stock.

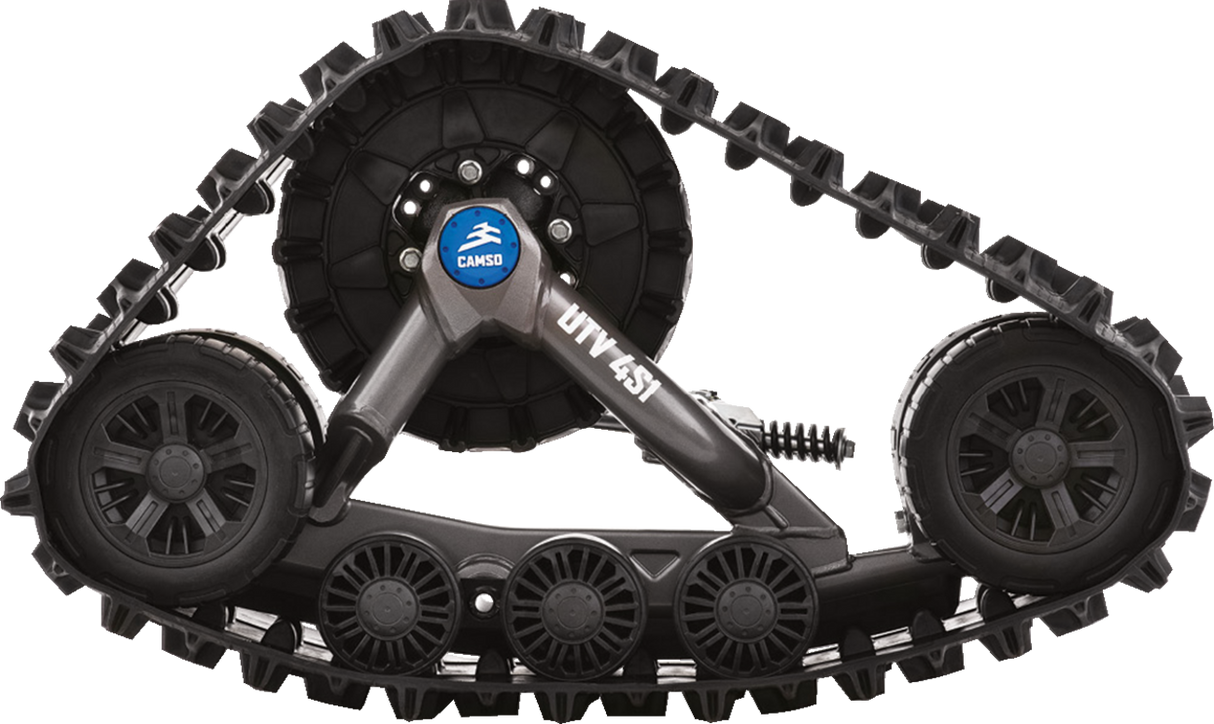

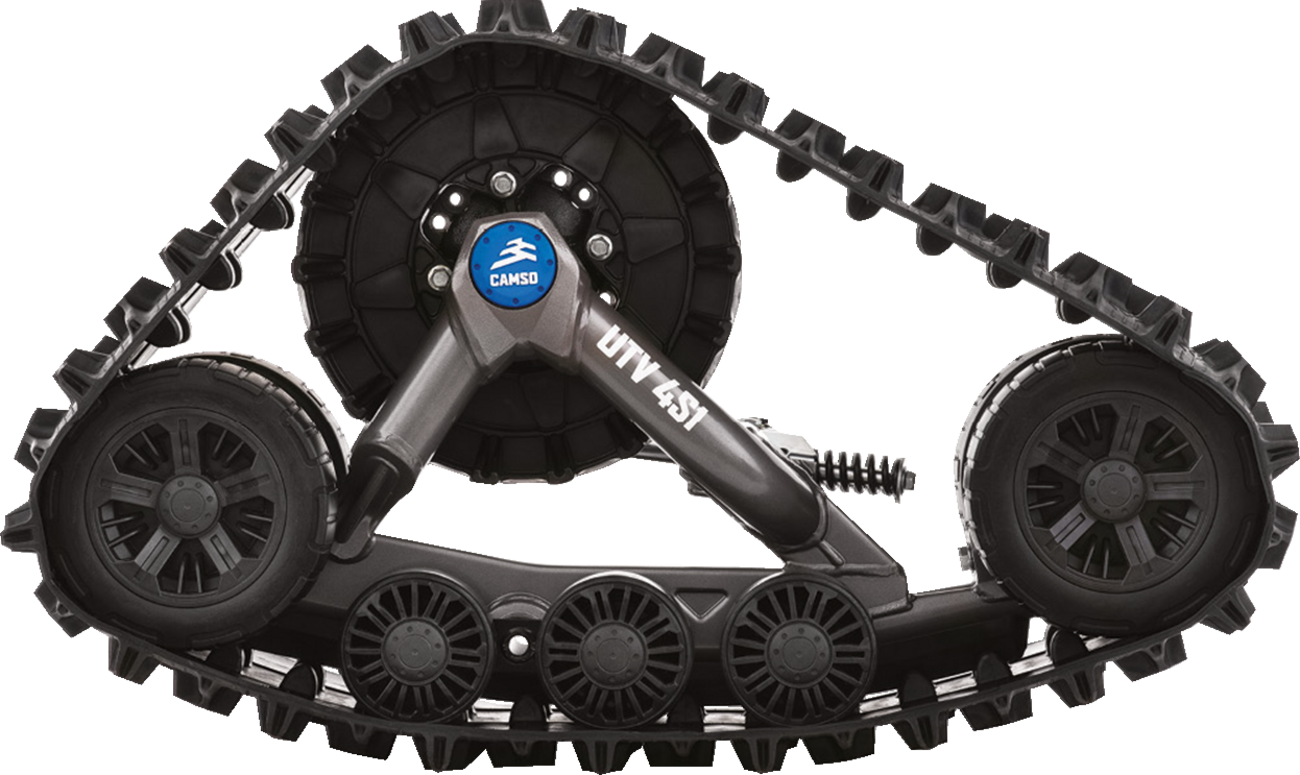

CAMSO Track System - X4S - Can-Am 7522-02-0687
Couldn't load pickup availability
Requirements for FREE shipping Camso tracks
Requirements for FREE shipping Camso tracks
Please click HERE to read about special shipping instructions.
CAMSO Track System - X4S - Can-Am 7522-02-0687
Description
Description
Track System - X4S - Can-Am
Track system for UTV or ATV, Easier switch between tracks and tires allows side-by-side enthusiasts to go out and free themselves from the road as quickly as possible, Sturdier and more adjustable tensioner prevents critical part misalignment, Triple bearing design with oil bath lubrication improves durability and stainless sleeves for greater reliability, New anti-rotation bracket bolted onto the frame with factory pre-loaded spring and dual rubber damper (rear only) makes adjusting the rod and track to the required angle easier, Enhanced wheel seal design improves sealing and guiding, reduces wear and eliminates water absorption due to temperature variations
Specifications
Specifications
| System | Camso X4S |
|---|---|
| Vehicle size | 400 cc to 700 cc |
| Offset (length) | Front: 24 in. (609 mm) Rear: 27 in. (685 mm) |
| Offset (width) | 6 in. (153 mm) |
| Ground clearance | Front height: 15 3/8 in. (390 mm) Rear height: 14 5/8 in. (372 mm) |
| Weight (average) | Front: 72.6 lb (33kg) Rear: 79.4 lb (36 kg) |
| Height | Front: 23.8 in. (604 mm) Rear: 23.2 in. (590 mm) |
| Length | Front: 40 in. (1016 mm) Rear: 42.5 in. (1081 mm) |
| Width | Front: 11.5 in. (292 mm) Rear: 12.5 in. (318 mm) |
| Rubber Track | |
| Width | Front: 11.5 in. (292 mm) Rear: 12.5 in. (318 mm) |
| Length | Front: 93.4 in. (2372 mm) Rear: 98.5 in. (2507 mm) |
| Lug height | Front: 1.25 in. (32 mm) Rear: 1.25 in. (32 mm) |
| Rubber track | Front: Flex Rear: Flat |
| Performance | |
| Ground surface | 2000 sq. in. (1.30 m²) |
| Maintained speed (average) | ⅔ |
| Specification | |
| Drive type | Internal drive |
| Frame | Carbon steel |
| Idler & mid-roller Wheels/Tire | 134 & 202 mm double bearings wheel. Standard and replacable sealed bearings. Elastomer outer band. Bladder-type wheel cap. |
| Hub and bearin.g | Cast steel multi-bolt (4) pattern hub. |
| Tandem & suspension | Mono front tandem on pivot point with bolted wheels. |
| Maintenance | |
| installation time (average) | 2 hrs |
| Subsequent | 1 hr |
