All work, all play, all seasons
Built to master your land's playgrounds, this track system maximizes all-terrain vehicles (300 CC to 1000 CC) performance. Plowing the ally and riding through the tighest spots in the woods never been more easy.
CAMSO ATV T4S Track System - Arctic Cat 6622-01-0366 is backordered and will ship as soon as it is back in stock.
CAMSO ATV T4S Track System - Arctic Cat 6622-01-0366
Couldn't load pickup availability
Requirements for FREE shipping Camso tracks
Requirements for FREE shipping Camso tracks
Please click HERE to read about special shipping instructions.
CAMSO ATV T4S Track System - Arctic Cat 6622-01-0366
Description
Description

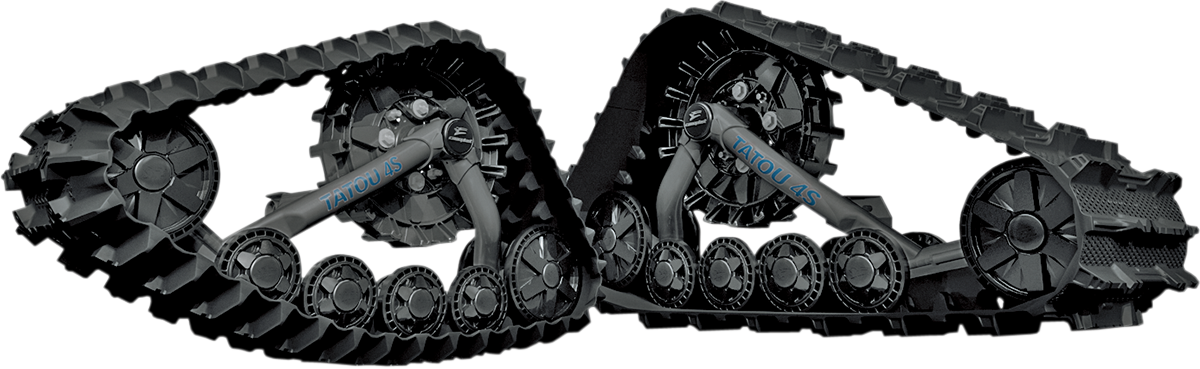

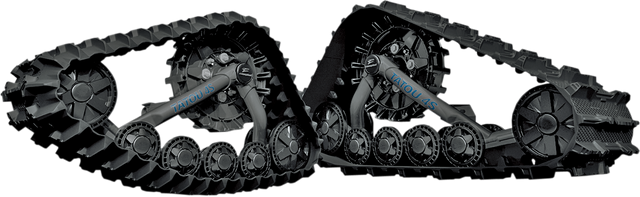

ATV T4S Track System - Arctic Cat
Increased steering stability and better impact absorption with two spring rates, soft for steering and stiff for impacts, Gearing matched to engine power, Front and rear factory preset spring and rubber cuts adjustment time by 50%, Stable, more precise steering for pleasant long-distance riding and long work hours, Flextrack* technology features flexible sides and a slight curve toward the inside, they provide a more comfortable ride than traditional flat tracks and reduced splatter from mud or snow
Specifications
- Brand: Camso
- Product: track system
- Riding style: ATV
- Front Height: 23.8"
- Ground Clearance: +3"
- Rear Track Length: 98.5"
- Front Track Width: 11.5"
- Rear Height: 23.2"
- Lug Height: 1.25"
- Front Track Length: 93.4"
- Tooth Count: 15-18
- Model: ATV T4S
- Rear Track Width: 12.5"
- Ground Surface: 1,3 m² (2000 in²)
- Part number: 6622-01-0366
- Supplier SKU: 4510-0433
- Units: each
Vehicle Fitment
| Make | Years | Model | Details |
|---|---|---|---|
| Arctic Cat | 2013 | 400 Core | Drive: 4x4; Core |
| Arctic Cat | 2013 | 450 Core | Drive: 4x4; Core |
| Arctic Cat | 2012 | 350 | Drive: 4x4 |
| Arctic Cat | 2011–2012 | 425i 4x4 | Drive: 4x4; i |
| Arctic Cat | 2012 | 425i SE | Drive: 4x4 |
| Arctic Cat | 2012 | 425i XC GT 4x4 | Drive: 4x4; i |
| Arctic Cat | 2010–2011 | 366 4x4 Auto SE | Drive: 4x4 |
| Arctic Cat | 2010–2011 | 366 Automatic 4x4 | Drive: 4x4 |
| Arctic Cat | 2008–2009 | 366 4x4 Auto | Drive: 4x4 |
| Arctic Cat | 2008–2009 | 366 SE Automatic 4x4 | Drive: 4x4 |
| Kymco | 2012 | MXU375 4x4 IRS | Drive: 4x4; IRS |
| Kymco | 2009–2011 | MXU375 IRS | Drive: 4x4; IRS |
Please confirm fitment for your specific model year.
Specifications
Specifications
| Offset (length) 1 | Front: 24 in. (609 mm) Rear: 27 in. (685 mm) |
| Offset (width) 2 | 6 in. (153 mm) |
| Weight | 71 lb (30 kg) |
| Height | Front: 23.8 in. (604 mm) Rear: 23.2 in. (590 mm) |
| Length | Front: 40 in. (1016 mm) Rear: 42.5 in. (1081 mm) |
| Width | Front: 11.5 in. (292 mm) Rear: 12.5 in. (318 mm) |
| Mounting hardware weigth | Approx. 6.25 lb (2.75 kg) |
| RUBBER TRACK | |
|---|---|
| Width | Front: 11.5 in. (292 mm) Rear: 12.5 in. (318 mm) |
| Length | Front: 93.4 in. (2372 mm) Rear: 98.5 in. (2507 mm) |
| Lug height | Front: 1.25 in. (32 mm) Rear: 1.25 in.(32 mm) |
| PERFORMANCE | |
| Ground surface | 2000 sq. in. (1.30 m²) |
| Ground clearance (average) | Increased by 3 in. (76 mm) |
| Maintained speed (average) | ⅔ |
| SPECIFICATION | |
| Drive type | Internal drive |
| Sprocket | 15 to 18 teeth |
| Rubber track | Front: Flex Rear: Flat |
| Frame | Carbon steel |
| Idler & mid-roller Wheels/Tire | 134 & 202 mm encapsulated and sealed wheel including elastomer outer band. Bladder-type wheel cap. |
| Guide | Molded UHMW |
| Hub and bearing | Cast steel multi-bolt (4) pattern hub. |
| Tandem & suspension | Mono front tandem on pivot point with bolted wheels. |
| Anti-rotation | Redesigned mild steel anti-rotation single rate spring and progressive damper. Quick connect steering limiter design. |
| MAINTENANCE | |
| Installation time | < 2 hr |
| Subsequent | < 1 hr |
