All work, all play, all seasons
Built to master your land's playgrounds, this track system maximizes all-terrain vehicles (300 CC to 1000 CC) performance. Plowing the ally and riding through the tighest spots in the woods never been more easy.
CAMSO ATV T4S Track System - Arctic Cat 6622-01-5600 is backordered and will ship as soon as it is back in stock.

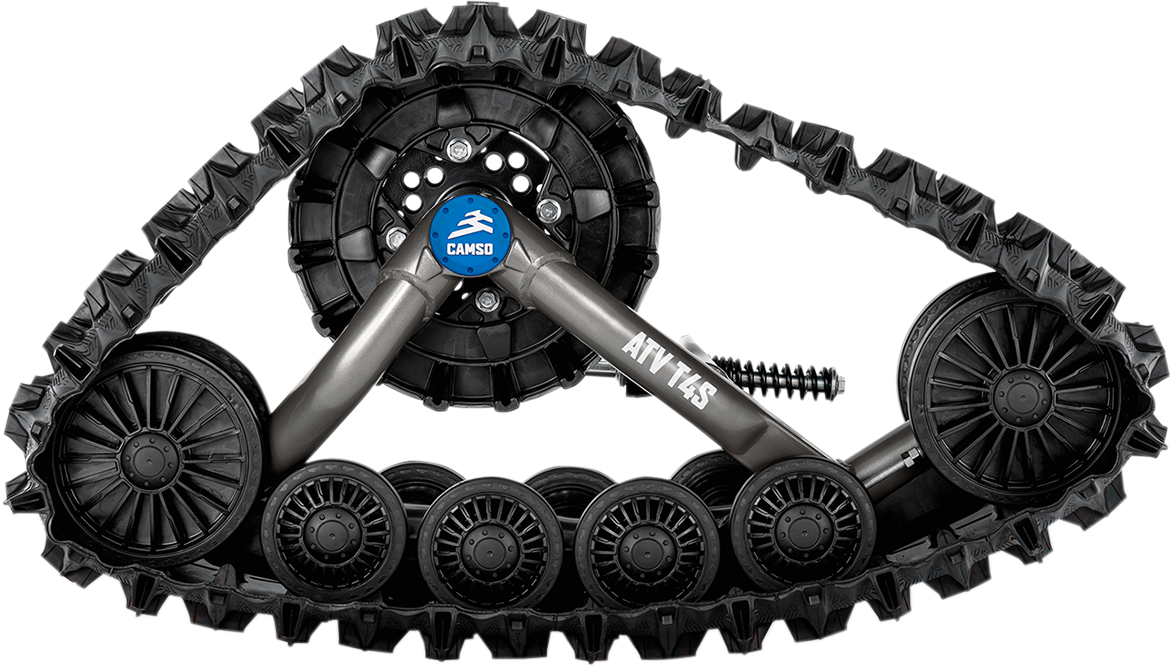

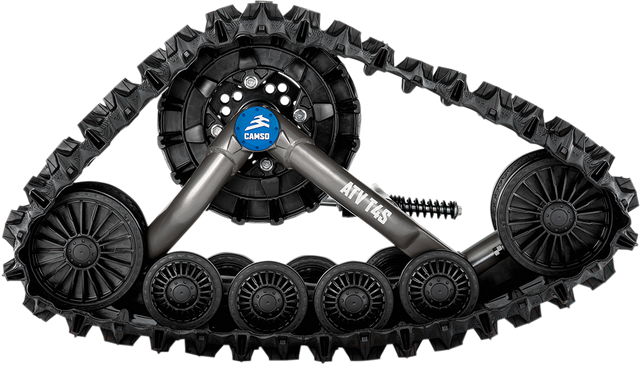

CAMSO ATV T4S Track System - Arctic Cat 6622-01-5600
Couldn't load pickup availability
Requirements for FREE shipping Camso tracks
Requirements for FREE shipping Camso tracks
Please click HERE to read about special shipping instructions.
CAMSO ATV T4S Track System - Arctic Cat 6622-01-5600
Description
Description
ATV T4S Track System - Arctic Cat
Increased steering stability and better impact absorption with two spring rates, soft for steering and stiff for impacts, Gearing matched to engine power, Front and rear factory preset spring and rubber cuts adjustment time by 50%, Stable, more precise steering for pleasant long-distance riding and long work hours, Flextrack* technology features flexible sides and a slight curve toward the inside, they provide a more comfortable ride than traditional flat tracks and reduced splatter from mud or snow
Specifications
- Brand: Camso
- Product: track system
- Riding style: ATV
- Front Track Width: 11.5"
- Lug Height: 1.25"
- Rear Track Width: 12.5"
- Model: ATV T4S
- Rear Track Length: 98.5"
- Tooth Count: 15-18
- Ground Clearance: +3"
- Rear Height: 23.2"
- Front Height: 23.8"
- Front Track Length: 93.4"
- Ground Surface: 1,3 m² (2000 in²)
- Part number: 6622-01-5600
- Supplier SKU: 4510-0445
- Units: each
Arctic Cat Fitment
| Make | Years | Model | Details |
|---|---|---|---|
| Arctic Cat | 2014–2017 | 500 | Drive: 4x4 |
| Arctic Cat | 2013–2014 | 500 XT | Drive: 4x4 |
| Arctic Cat | 2010, 2013–2014 | 550 S 4x4 | Drive: 4x4 |
| Arctic Cat | 2013–2014 | 550 XT | Drive: 4x4 |
| Arctic Cat | 2010–2014 | H1 550i 4x4 | Drive: 4x4 |
| Arctic Cat | 2009, 2011, 2014 | H1 550i LTD 4x4 | Drive: 4x4 |
| Arctic Cat | 2013 | 500 Core | Drive: 4x4 |
| Arctic Cat | 2013 | 550 Core | Drive: 4x4; Core |
| Arctic Cat | 2012–2013 | 550i LTD | Drive: 4x4 |
| Arctic Cat | 2009, 2011–2012 | 550 XT 4x4 | Drive: 4x4 |
| Arctic Cat | 2012 | 550i GT | Drive: 4x4 |
| Arctic Cat | 2010–2012 | H1 450 4x4 | Drive: 4x4 |
| Arctic Cat | 2012 | H1 550i GT 4x4 | Drive: 4x4 |
| Arctic Cat | 2011 | 550 S | Drive: 4x4 |
| Arctic Cat | 2011 | H1 450 LTD 4x4 | Drive: 4x4 |
| Arctic Cat | 2010 | 450 EFI H1 4x4 Auto | Drive: 4x4 |
| Arctic Cat | 2009 | 550 H1 EFI | Drive: 4x4 |
| Arctic Cat | 2005, 2007–2008 | 500i Automatic 4x4 | Drive: 4x4; i |
| Arctic Cat | 2005–2006, 2008 | 500i LE 4x4 | Drive: 4x4; i |
| Arctic Cat | 2005–2007 | 400 4x4 Auto LE | Drive: 4x4 |
| Arctic Cat | 2005 | 500i 4x4 | Drive: 4x4; i |
| Arctic Cat | 2005 | 650i 4x4 | Drive: 4x4; i |
| Arctic Cat | 2004 | 650 4x4 Auto | Drive: 4x4 |
Please confirm fitment for your specific model year.
Specifications
Specifications
| Offset (length) 1 | Front: 24 in. (609 mm) Rear: 27 in. (685 mm) |
| Offset (width) 2 | 6 in. (153 mm) |
| Weight | 71 lb (30 kg) |
| Height | Front: 23.8 in. (604 mm) Rear: 23.2 in. (590 mm) |
| Length | Front: 40 in. (1016 mm) Rear: 42.5 in. (1081 mm) |
| Width | Front: 11.5 in. (292 mm) Rear: 12.5 in. (318 mm) |
| Mounting hardware weigth | Approx. 6.25 lb (2.75 kg) |
| RUBBER TRACK | |
|---|---|
| Width | Front: 11.5 in. (292 mm) Rear: 12.5 in. (318 mm) |
| Length | Front: 93.4 in. (2372 mm) Rear: 98.5 in. (2507 mm) |
| Lug height | Front: 1.25 in. (32 mm) Rear: 1.25 in.(32 mm) |
| PERFORMANCE | |
| Ground surface | 2000 sq. in. (1.30 m²) |
| Ground clearance (average) | Increased by 3 in. (76 mm) |
| Maintained speed (average) | ⅔ |
| SPECIFICATION | |
| Drive type | Internal drive |
| Sprocket | 15 to 18 teeth |
| Rubber track | Front: Flex Rear: Flat |
| Frame | Carbon steel |
| Idler & mid-roller Wheels/Tire | 134 & 202 mm encapsulated and sealed wheel including elastomer outer band. Bladder-type wheel cap. |
| Guide | Molded UHMW |
| Hub and bearing | Cast steel multi-bolt (4) pattern hub. |
| Tandem & suspension | Mono front tandem on pivot point with bolted wheels. |
| Anti-rotation | Redesigned mild steel anti-rotation single rate spring and progressive damper. Quick connect steering limiter design. |
| MAINTENANCE | |
| Installation time | < 2 hr |
| Subsequent | < 1 hr |
