All work, all play, all seasons
Built to master your land's playgrounds, this track system maximizes all-terrain vehicles (300 CC to 1000 CC) performance. Plowing the ally and riding through the tighest spots in the woods never been more easy.
CAMSO ATV T4S Track System - KingQuad 500 6622-06-0460 is backordered and will ship as soon as it is back in stock.

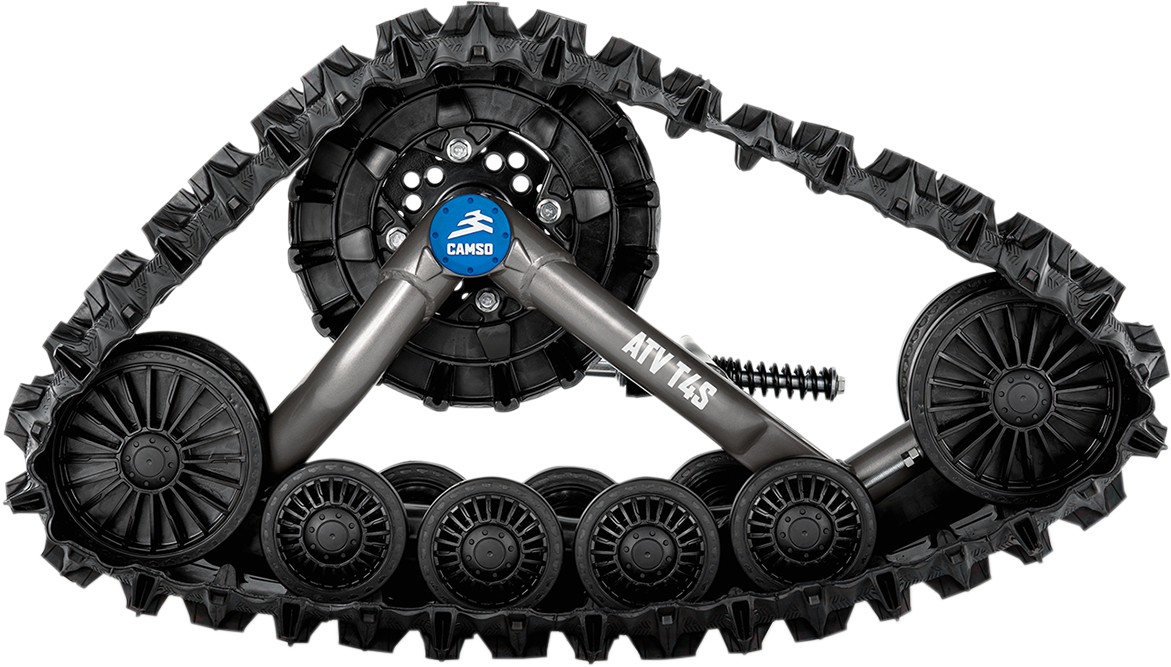

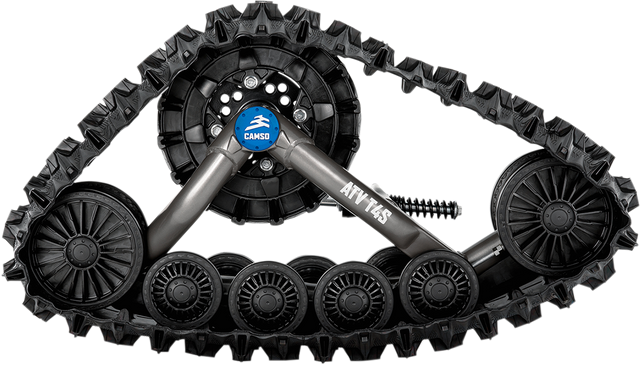

CAMSO ATV T4S Track System - KingQuad 500 6622-06-0460
Couldn't load pickup availability
Requirements for FREE shipping Camso tracks
Requirements for FREE shipping Camso tracks
Please click HERE to read about special shipping instructions.
CAMSO ATV T4S Track System - KingQuad 500 6622-06-0460
Description
Description
ATV T4S Track System - KingQuad 500
Increased steering stability and better impact absorption with two spring rates, soft for steering and stiff for impacts, Gearing matched to engine power, Front and rear factory preset spring and rubber cuts adjustment time by 50%, Stable, more precise steering for pleasant long-distance riding and long work hours, Flextrack* technology features flexible sides and a slight curve toward the inside, they provide a more comfortable ride than traditional flat tracks and reduced splatter from mud or snow
Specifications
- Brand: Camso
- Product: track system
- Riding style: ATV
- Front Track Width: 11.5"
- Ground Clearance: +3"
- Ground Surface: 1,3 m² (2000 in²)
- Front Height: 23.8"
- Front Track Length: 93.4"
- Model: ATV T4S
- Rear Track Width: 12.5"
- Tooth Count: 15-18
- Rear Track Length: 98.5"
- Rear Height: 23.2"
- Lug Height: 1.25"
- Part number: 6622-06-0460
- Supplier SKU: 4510-0535
- Units: each
Suzuki Fitment
| Make | Years | Model | Details |
|---|---|---|---|
| Suzuki | 2020–2021, 2025 | LT-A KingQuad 500 AXi PS SE Camo 4x4 | Drive: 4x4; AXi PS |
| Suzuki | 2011–2025 | LT-A500 KingQuad AXi | |
| Suzuki | 2009, 2011–2025 | LT-A500 KingQuad AXi Power Steering | |
| Suzuki | 2016–2025 | LT-A500 KingQuad AXi Power Steering SE | |
| Suzuki | 2020 | LT-A500 KingQuad AXi Power Steering Rugged | Drive: 4x4; AXi PS |
| Suzuki | 2009, 2012–2019 | LT-A KingQuad 500 AXi PS Camo 4x4 | Drive: 4x4; AXi PS |
| Suzuki | 2011–2018 | LT-A KingQuad 500 AXi Camo 4x4 | Drive: 4x4 |
| Suzuki | 2017 | LT-A500 KingQuad AXi Power Steering SE Rugged | |
| Suzuki | 2013 | LT-A KingQuad 500 AXi PS 30th Anniversary Ed. 4x4 | Drive: 4x4; AXi PS |
| Suzuki | 2008–2009 | LT-A KingQuad 450 AXi Camo 4x4 | Drive: 4x4; AXi |
| Suzuki | 2009 | LT-A KingQuad 450 AXi LTD 4x4 | Drive: 4x4; AXi |
| Suzuki | 2009 | LT-A KingQuad 500 AXi PS LTD 4x4 | Drive: 4x4; AXi PS |
| Suzuki | 2008–2009 | LT-A450X KingQuad AXi 4x4 | Drive: 4x4 |
| Suzuki | 2008 | LT-A KingQuad 450 AXi AT SE 4x4 |
Please confirm fitment for your specific model year.
Specifications
Specifications
| Offset (length) 1 | Front: 24 in. (609 mm) Rear: 27 in. (685 mm) |
| Offset (width) 2 | 6 in. (153 mm) |
| Weight | 71 lb (30 kg) |
| Height | Front: 23.8 in. (604 mm) Rear: 23.2 in. (590 mm) |
| Length | Front: 40 in. (1016 mm) Rear: 42.5 in. (1081 mm) |
| Width | Front: 11.5 in. (292 mm) Rear: 12.5 in. (318 mm) |
| Mounting hardware weigth | Approx. 6.25 lb (2.75 kg) |
| RUBBER TRACK | |
|---|---|
| Width | Front: 11.5 in. (292 mm) Rear: 12.5 in. (318 mm) |
| Length | Front: 93.4 in. (2372 mm) Rear: 98.5 in. (2507 mm) |
| Lug height | Front: 1.25 in. (32 mm) Rear: 1.25 in.(32 mm) |
| PERFORMANCE | |
| Ground surface | 2000 sq. in. (1.30 m²) |
| Ground clearance (average) | Increased by 3 in. (76 mm) |
| Maintained speed (average) | ⅔ |
| SPECIFICATION | |
| Drive type | Internal drive |
| Sprocket | 15 to 18 teeth |
| Rubber track | Front: Flex Rear: Flat |
| Frame | Carbon steel |
| Idler & mid-roller Wheels/Tire | 134 & 202 mm encapsulated and sealed wheel including elastomer outer band. Bladder-type wheel cap. |
| Guide | Molded UHMW |
| Hub and bearing | Cast steel multi-bolt (4) pattern hub. |
| Tandem & suspension | Mono front tandem on pivot point with bolted wheels. |
| Anti-rotation | Redesigned mild steel anti-rotation single rate spring and progressive damper. Quick connect steering limiter design. |
| MAINTENANCE | |
| Installation time | < 2 hr |
| Subsequent | < 1 hr |
