All work, all play, all seasons

Built to master your land's playgrounds, this track system maximizes all-terrain vehicles (300 CC to 1000 CC) performance. Plowing the ally and riding through the tighest spots in the woods never been more easy.

1 5

Popular right now
Lots of people have looked at this recently

Selling fast!
Grab yours while you can
CAMSO  |  SKU: 4510-1612

CAMSO ATV T4S Track System - Sportsman 450/570 6622-05-1664

$4,59900
Shipping calculated at checkout.

Requirements for FREE shipping Camso tracks

Please click HERE to read about special shipping instructions.

CAMSO ATV T4S Track System - Sportsman 450/570 6622-05-1664

Description

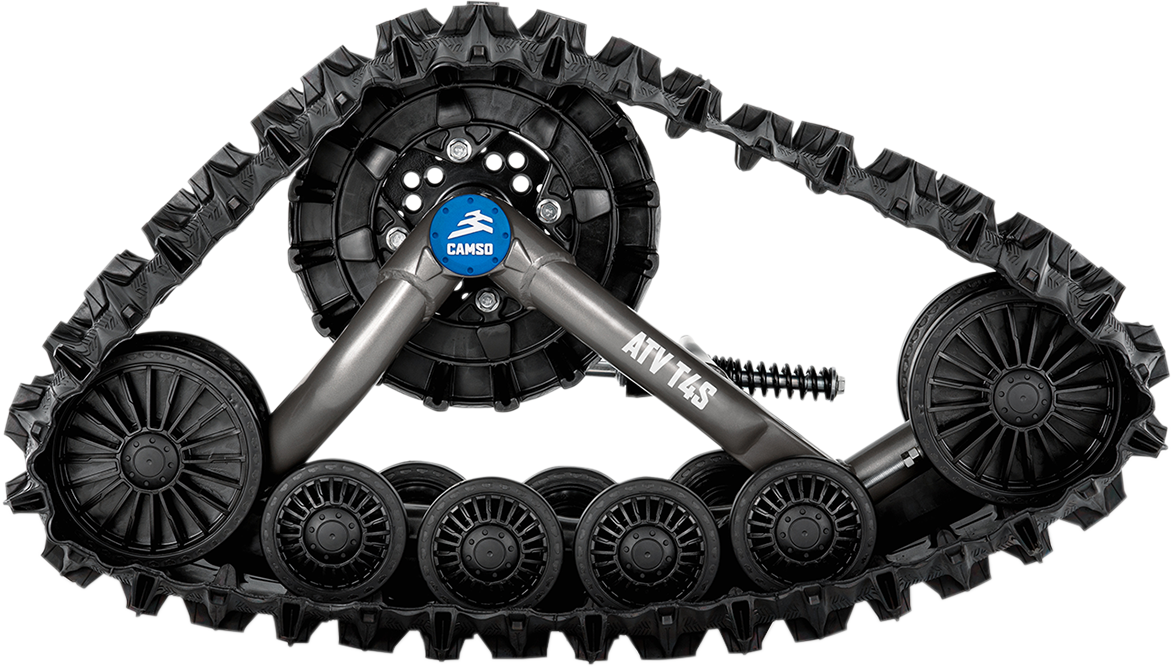

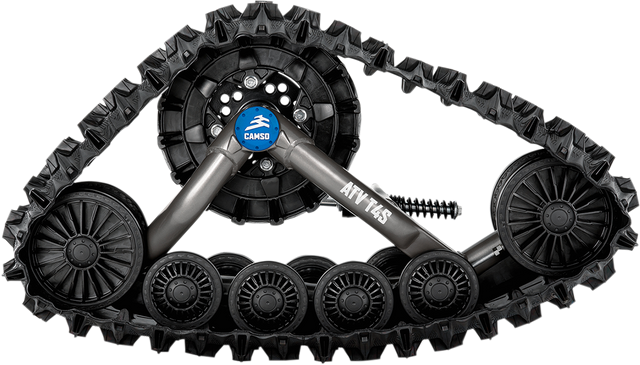

ATV T4S Track System - Sportsman 450/570
Increased steering stability and better impact absorption with two spring rates, soft for steering and stiff for impacts, Gearing matched to engine power, Front and rear factory preset spring and rubber cuts adjustment time by 50%, Stable, more precise steering for pleasant long-distance riding and long work hours, Flextrack* technology features flexible sides and a slight curve toward the inside, they provide a more comfortable ride than traditional flat tracks and reduced splatter from mud or snow


Specifications

  • Brand: Camso
  • Product: track system
  • Riding style: ATV
  • Ground Surface: 1,3 m² (2000 in²)
  • Rear Height: 23.2"
  • Model: ATV T4S
  • Rear Track Width: 12.5"
  • Front Height: 23.8"
  • Front Track Width: 11.5"
  • Lug Height: 1.25"
  • Rear Track Length: 98.5"
  • Tooth Count: 15-18
  • Ground Clearance: +3"
  • Front Track Length: 93.4"
  • Part number: 6622-05-1664
  • Supplier SKU: 4510-1612
  • Units: each

Polaris Fitment

MakeYearsModelDetails
Polaris2021–2026Sportsman 450 HO
Polaris2021–2026Sportsman 450 HO EPS
Polaris2021–2026Sportsman 570 EPS
Polaris2026Sportsman 570 Premium 40th Anniversary
Polaris2025–2026Sportsman 570 Touring
Polaris2021–2026Sportsman 570 Trail
Polaris2025–2026Sportsman 570 X2
Polaris2022–2025Sportsman 450 HO Utility Edition
Polaris2021–2025Sportsman 570
Polaris2021–2025Sportsman 570 PremiumDrive: 4x4; EPS
Polaris2025Sportsman 570 Touring EPS
Polaris2025Sportsman 570 Touring Premium
Polaris2022–2025Sportsman 570 Utility HDDrive: 4x4
Polaris2022Sportsman 570 EPS Utility EditionDrive: 4x4
Polaris2021Sportsman 570 Utility HD LEDrive: 4x4

Please confirm fitment for your specific model year.

Specifications



Offset (length) 1 Front: 24 in. (609 mm) Rear: 27 in. (685 mm)
Offset (width) 2 6 in. (153 mm)
Weight 71 lb (30 kg)
Height Front: 23.8 in. (604 mm) Rear: 23.2 in. (590 mm)
Length Front: 40 in. (1016 mm) Rear: 42.5 in. (1081 mm)
Width Front: 11.5 in. (292 mm) Rear: 12.5 in. (318 mm)
Mounting hardware weigth Approx. 6.25 lb (2.75 kg)
RUBBER TRACK
Width Front: 11.5 in. (292 mm) Rear: 12.5 in. (318 mm)
Length Front: 93.4 in. (2372 mm) Rear: 98.5 in. (2507 mm)
Lug height Front: 1.25 in. (32 mm) Rear: 1.25 in.(32 mm)
PERFORMANCE
Ground surface 2000 sq. in. (1.30 m²)
Ground clearance (average) Increased by 3 in. (76 mm)
Maintained speed (average) ⅔
SPECIFICATION
Drive type Internal drive
Sprocket 15 to 18 teeth
Rubber track Front: Flex Rear: Flat
Frame Carbon steel
Idler & mid-roller Wheels/Tire 134 & 202 mm encapsulated and sealed wheel including elastomer outer band. Bladder-type wheel cap.
Guide Molded UHMW
Hub and bearing Cast steel multi-bolt (4) pattern hub.
Tandem & suspension Mono front tandem on pivot point with bolted wheels.
Anti-rotation Redesigned mild steel anti-rotation single rate spring and progressive damper. Quick connect steering limiter design.
MAINTENANCE
Installation time < 2 hr
Subsequent < 1 hr
