All work, all play, all seasons
Built to master your land's playgrounds, this track system maximizes all-terrain vehicles (300 CC to 1000 CC) performance. Plowing the ally and riding through the tighest spots in the woods never been more easy.
CAMSO Track System - T4S - Argo 6622-38-0456 is backordered and will ship as soon as it is back in stock.

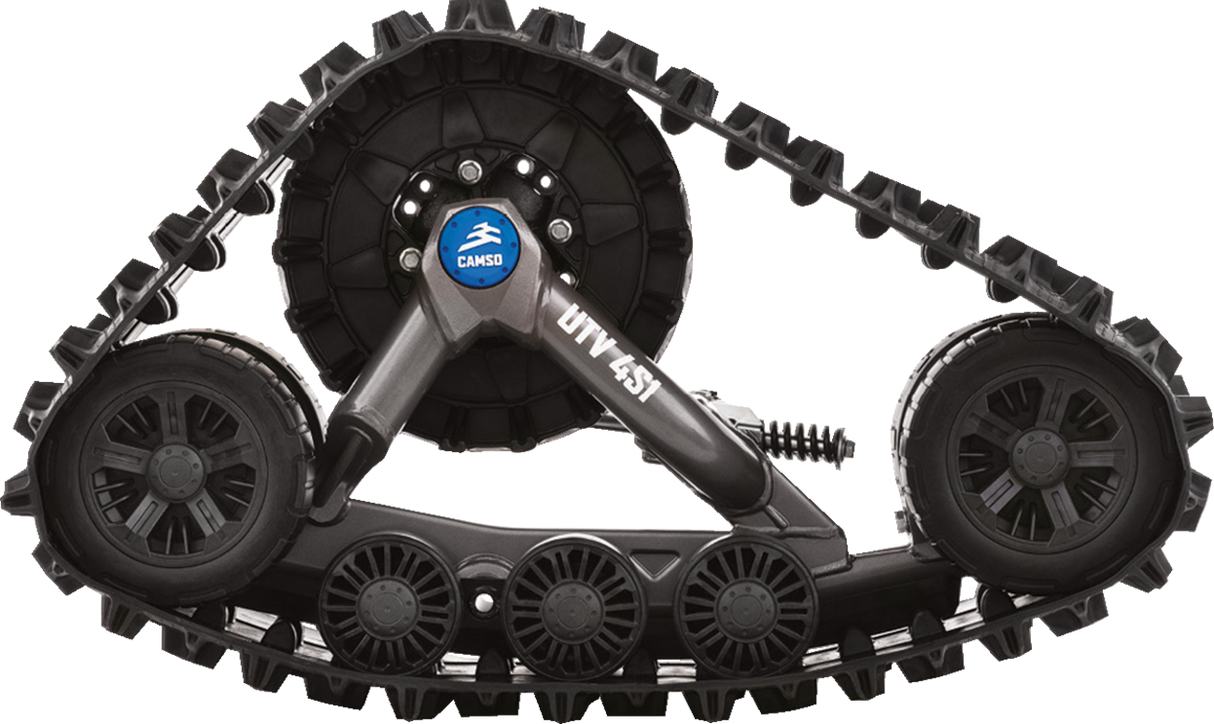

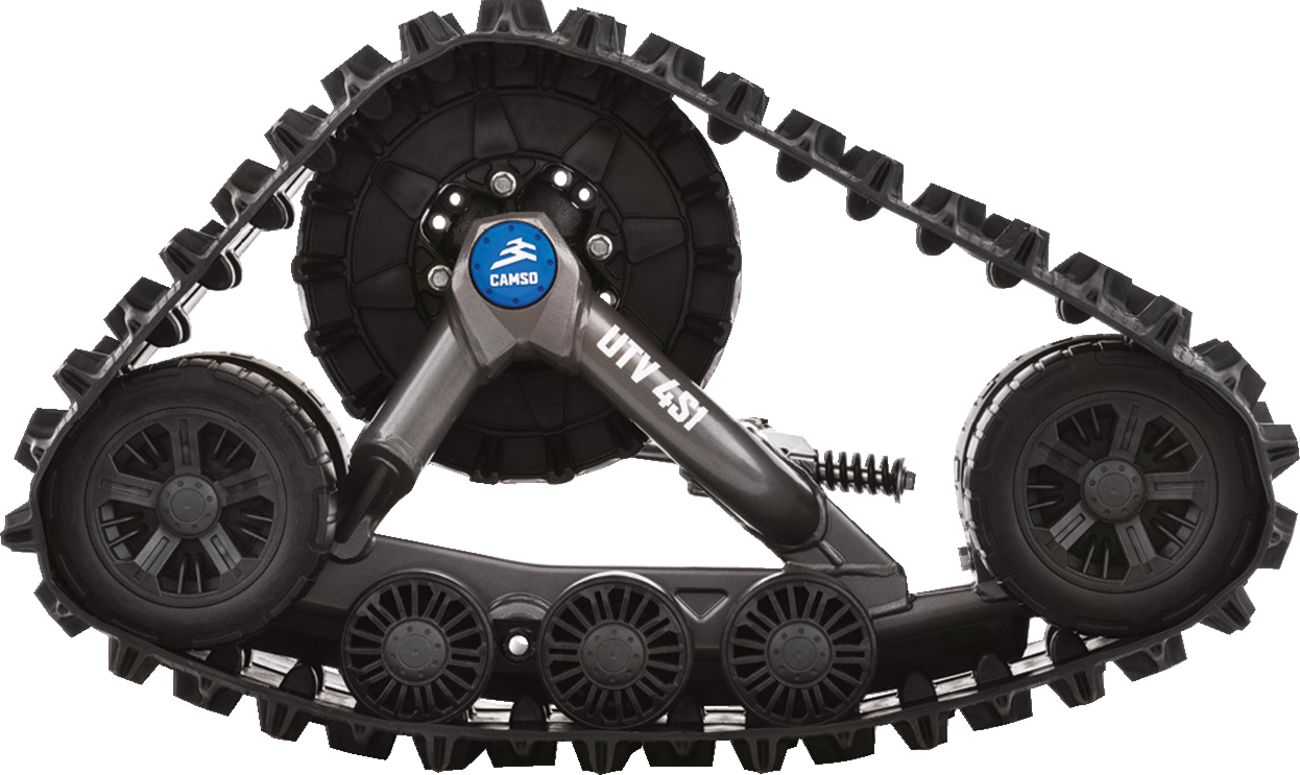

CAMSO Track System - T4S - Argo 6622-38-0456
Couldn't load pickup availability
Requirements for FREE shipping Camso tracks
Requirements for FREE shipping Camso tracks
Please click HERE to read about special shipping instructions.
CAMSO Track System - T4S - Argo 6622-38-0456
Description
Description
Track System - T4S - Argo
Track system for UTV or ATV, Easier switch between tracks and tires allows side-by-side enthusiasts to go out and free themselves from the road as quickly as possible, Sturdier and more adjustable tensioner prevents critical part misalignment, Triple bearing design with oil bath lubrication improves durability and stainless sleeves for greater reliability, New anti-rotation bracket bolted onto the frame with factory pre-loaded spring and dual rubber damper (rear only) makes adjusting the rod and track to the required angle easier, Enhanced wheel seal design improves sealing and guiding, reduces wear and eliminates water absorption due to temperature variations
Specifications
Specifications
ย
| Offset (length) 1 | Front: 24 in. (609 mm) Rear: 27 in. (685 mm) |
| Offset (width) 2 | 6 in. (153 mm) |
| Weight | 71 lb (30 kg) |
| Height | Front: 23.8 in. (604 mm) Rear: 23.2 in. (590 mm) |
| Length | Front: 40 in. (1016 mm) Rear: 42.5 in. (1081 mm) |
| Width | Front: 11.5 in. (292 mm) Rear: 12.5 in. (318 mm) |
| Mounting hardware weigth | Approx. 6.25 lb (2.75 kg) |
| RUBBER TRACK | |
|---|---|
| Width | Front: 11.5 in. (292 mm) Rear: 12.5 in. (318 mm) |
| Length | Front: 93.4 in. (2372 mm) Rear: 98.5 in. (2507 mm) |
| Lug height | Front: 1.25 in. (32 mm) Rear: 1.25 in.(32 mm) |
| PERFORMANCE | |
| Ground surface | 2000 sq. in. (1.30 mยฒ) |
| Ground clearance (average) | Increased by 3 in. (76 mm) |
| Maintained speed (average) | โ |
| SPECIFICATION | |
| Drive type | Internal drive |
| Sprocket | 15 to 18 teeth |
| Rubber track | Front: Flex Rear: Flat |
| Frame | Carbon steel |
| Idler & mid-roller Wheels/Tire | 134 & 202 mm encapsulated and sealed wheel including elastomer outer band. Bladder-type wheel cap. |
| Guide | Molded UHMW |
| Hub and bearing | Cast steel multi-bolt (4) pattern hub. |
| Tandem & suspension | Mono front tandem on pivot point with bolted wheels. |
| Anti-rotation | Redesigned mild steel anti-rotation single rate spring and progressive damper. Quick connect steering limiter design. |
| MAINTENANCE | |
| Installation time | < 2 hr |
| Subsequent | < 1 hr |
