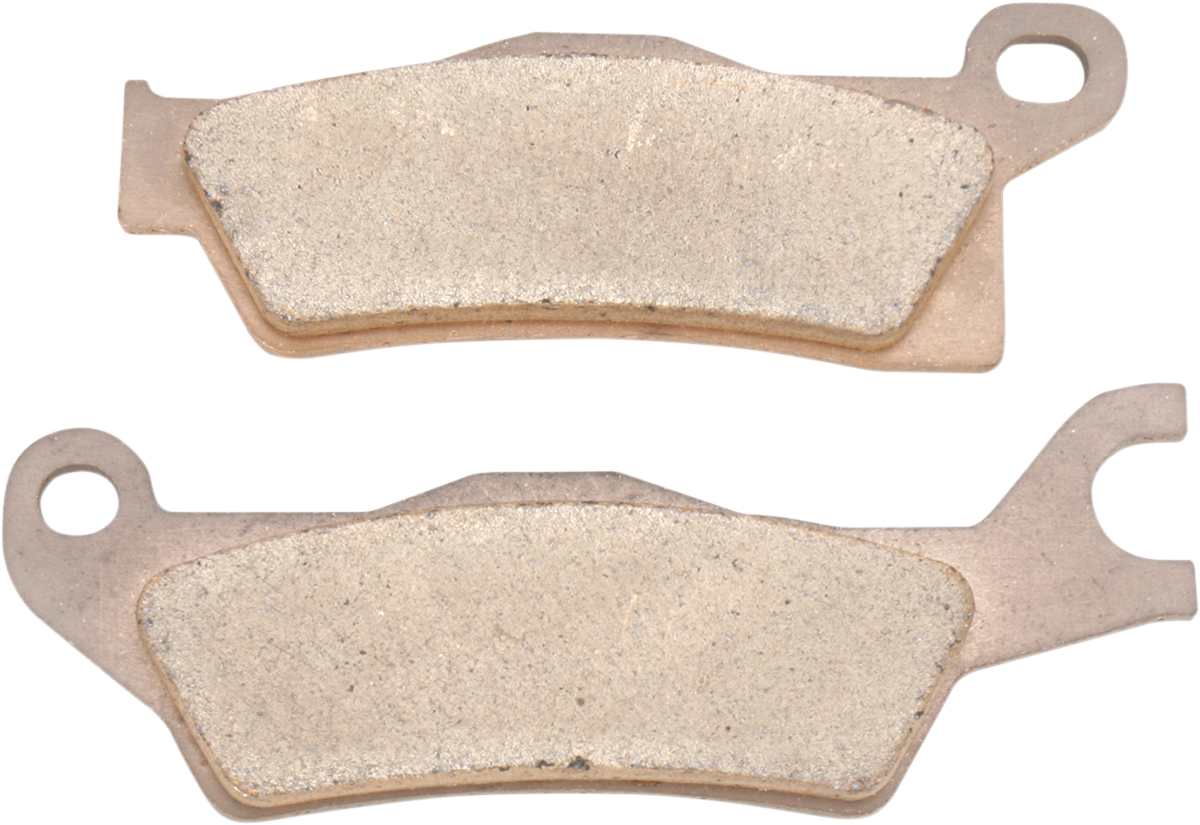

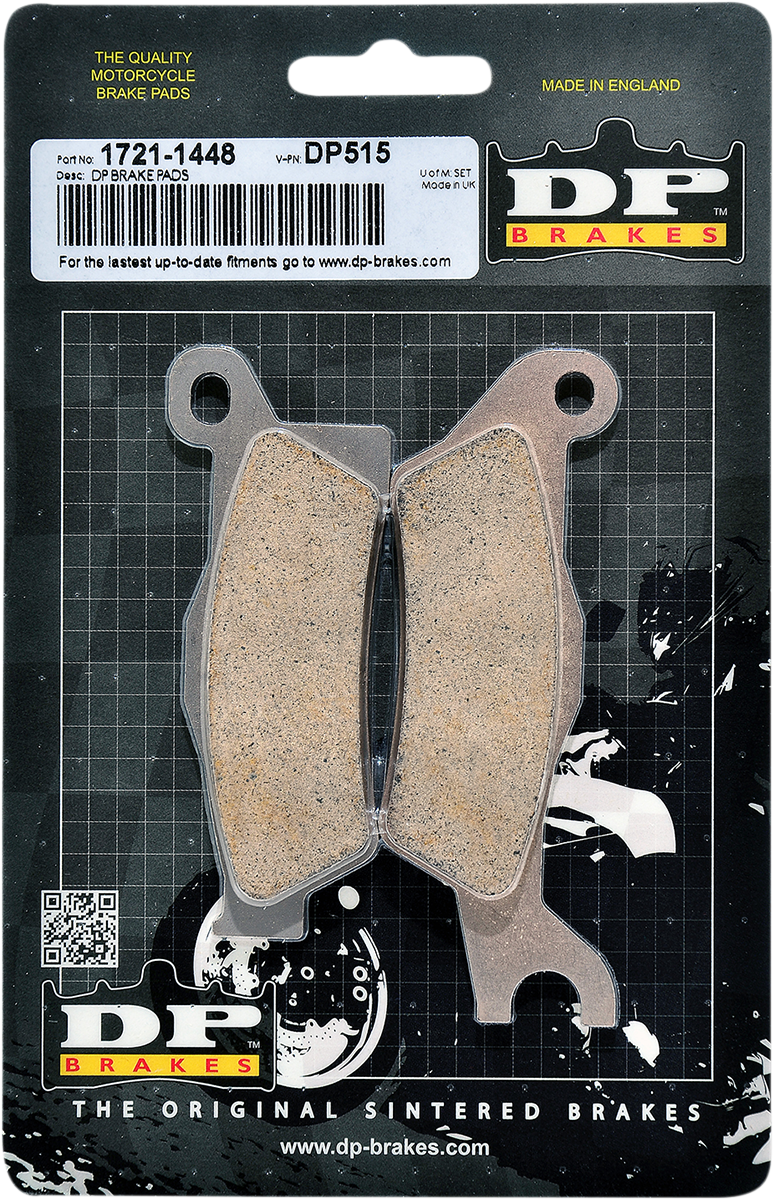

DP Brakes DP515 standard sintered ATV brake pads for Can-Am Outlander and Renegade models (2009–2026). Copper alloy sintered metal compound for high-tech ATV performance in all conditions. Aluminum oxide ceramic backplate keeps heat away from the caliper piston for fade-free performance. GG friction rated. Sold as a set of 2 pads.

Important: Mounting position (front-left, rear-left, front-right, or rear-right) varies by model and year — verify your specific position in the fitment table below before ordering.

Key Features

• Copper alloy sintered metal compound — outlasts organic and aramid pads
• Ceramic aluminum oxide backplate — keeps heat away from caliper piston and fluid
• Equal performance in wet and dry conditions
• GG friction rated; quiet and non-abrasive to most rotors
• Pairs with DP Brakes rotors for maximum ATV braking performance
• Sold as a set of 2 pads

Specifications

• Brand: DP Brakes
• Part Number: DP515
• Series: Standard
• Type: Sintered Metal
• Material: Copper Alloy Sintered Metal
• Length: 4-19/64" / 3-3/4" (varies by position)
• Width: 1-35/64" / 1-27/64" (varies by position)
• Thickness: 19/64"
• Mounting Position: Front or Rear (position varies by model — see fitment below)
• Quantity: Set of 2 pads
• Riding Style: ATV
• SKU: 1721-1448

Fitment — Can-Am Outlander & Renegade

Position shown per model and year. FL = Front-Left, RL = Rear-Left, FR = Front-Right, RR = Rear-Right.

Outlander 500 / 500 2WD / 500 DPS

• 2013 Outlander 500 EFI DPS / EFI XT — FL
• 2013–2015 Outlander Max 500 EFI / EFI DPS / EFI XT — FL
• 2023 Outlander 500 4x2 / 4x4 / DPS 4x4 — FL
• 2023 Outlander Max 500 DPS 4x4 — FL
• 2024–2026 Outlander 500 / 500 DPS / 500 2WD — FL
• 2025–2026 Outlander Max 500 DPS — FL

Outlander 650 / 650 DPS / 650 XT

• 2013–2016 Outlander 650 EFI / 650 EFI DPS / 650 EFI XT — FL
• 2016 Outlander 650 XT 4x4 — FL
• 2017–2021 Outlander 650 / 650 DPS / 650 XT — FL

Outlander 700 / 700 DPS / 700 XT / 700 X mr

• 2023 Outlander 700 4x4 / 700 DPS 4x4 / 700 XT 4x4 / 700 X MR 4x4 — Front
• 2023–2026 Outlander 700 / 700 DPS / 700 XT / 700 X mr — Front
• 2024–2026 Outlander Max 700 DPS — Front (2025–2026)
• 2024–2026 Outlander Max 700 XT — Front (2025–2026)

Outlander 800R EFI

• 2012–2015 Outlander 800R EFI / 800R EFI XT — FL
• 2013–2014 Outlander Max 800R EFI / EFI DPS / EFI XT / EFI XT-P — FL

Outlander 850 / 850 DPS / 850 XT / 850 XT-P / 850 X mr

• 2016–2026 Outlander 850 DPS — FL
• 2016–2026 Outlander 850 XT — FL
• 2016–2024 Outlander 850 XT-P — FL
• 2019–2025 Outlander 850 — FL
• 2022–2024 Outlander 850 Hunting Edition — FL
• 2023–2026 Outlander 850 X mr — FL (front); RL (rear, 2025–2026)
• 2023–2026 Outlander Max 850 DPS — FL (2024–2026)
• 2016–2026 Outlander Max 850 XT — FL (2023–2026)
• 2016–2024 Outlander Max 850 XT-P — FL (2023–2024)
• 2026 Outlander Max 850 6X6 DPS — FL (front); RL (rear)

Outlander 1000 / 1000 EFI / 1000 XT / 1000 X mr / 1000 X xc

• 2012 Outlander 1000 EFI — FR
• 2012–2016 Outlander 1000 EFI XT — FR (2012, 2016); RR (2016)
• 2013–2016 Outlander 1000 EFI DPS — FR/RR (2016)
• 2013–2016 Outlander 1000 EFI XT-P — FR/RR
• 2013–2016 Outlander Max 1000 EFI XT / XT-P / LTD — FL
• 2013–2022 Outlander 1000 X mr — FR/RR
• 2015–2016 Outlander 1000 6x6 XT — FR
• 2017–2019 Outlander 1000 DPS — FR/RR
• 2017–2022 Outlander 1000 XT / 1000 XT-P — FR/RR
• 2017–2022 Outlander Max 1000 XT / XT-P / Limited — FL (front, 2017–2022); RL (rear, 2018–2022)
• 2018–2022 Outlander 1000 X xc — FR/RR

Outlander 6X6 Models

• 2019 Outlander Max 450 DPS 6x6 — FL
• 2019–2025 Outlander Max 650 6X6 DPS — FL (front); RL (rear)
• 2020–2024 Outlander Max 450 6X6 DPS — FL
• 2026 Outlander Max 700 6X6 DPS — FL

Outlander L / Outlander L Max

• 2015–2016 Outlander L 450 / Outlander L Max 450 — FR/RR
• 2016 Outlander L 570 / Outlander L Max 570 / Outlander L Max 570 DPS — FL

Outlander PRO HD5 / HD7

• 2023 Outlander Pro XU HD5 / HD7 — Front
• 2024 Outlander PRO HD5 Hunting Edition — Front
• 2024–2026 Outlander PRO HD5 XU / PRO HD7 XU / PRO HD7 Hunting Edition — Front
• 2025–2026 Outlander PRO Max HD7 XU / PRO Max HD7 Hunting Edition — Front

Renegade

• 2009–2015 Renegade 500 — FL (front); RR (rear)
• 2012–2015 Renegade 1000 — FL (front); RL (rear)
• 2016–2020 Renegade 570 — FL (front); RL (rear)
• 2016–2020 Renegade 850 — FL (front); RL (rear)
• 2020–2021 Renegade 1000 X xc — FL (front); RL (rear)
• 2020–2022 Renegade 1000 X mr — FL
• 2022–2026 Renegade 650 X mr — FL
• 2022–2026 Renegade 1000R X xc — FL (2024–2026); RL (2022–2026)
• 2023–2025 Renegade 650 — FL
• 2023–2026 Renegade 1000R X mr — FL

Sold as a set of 2 pads. Caliper position varies by model year — confirm front vs rear and left vs right before ordering. Please verify fitment for your specific trim and year.
