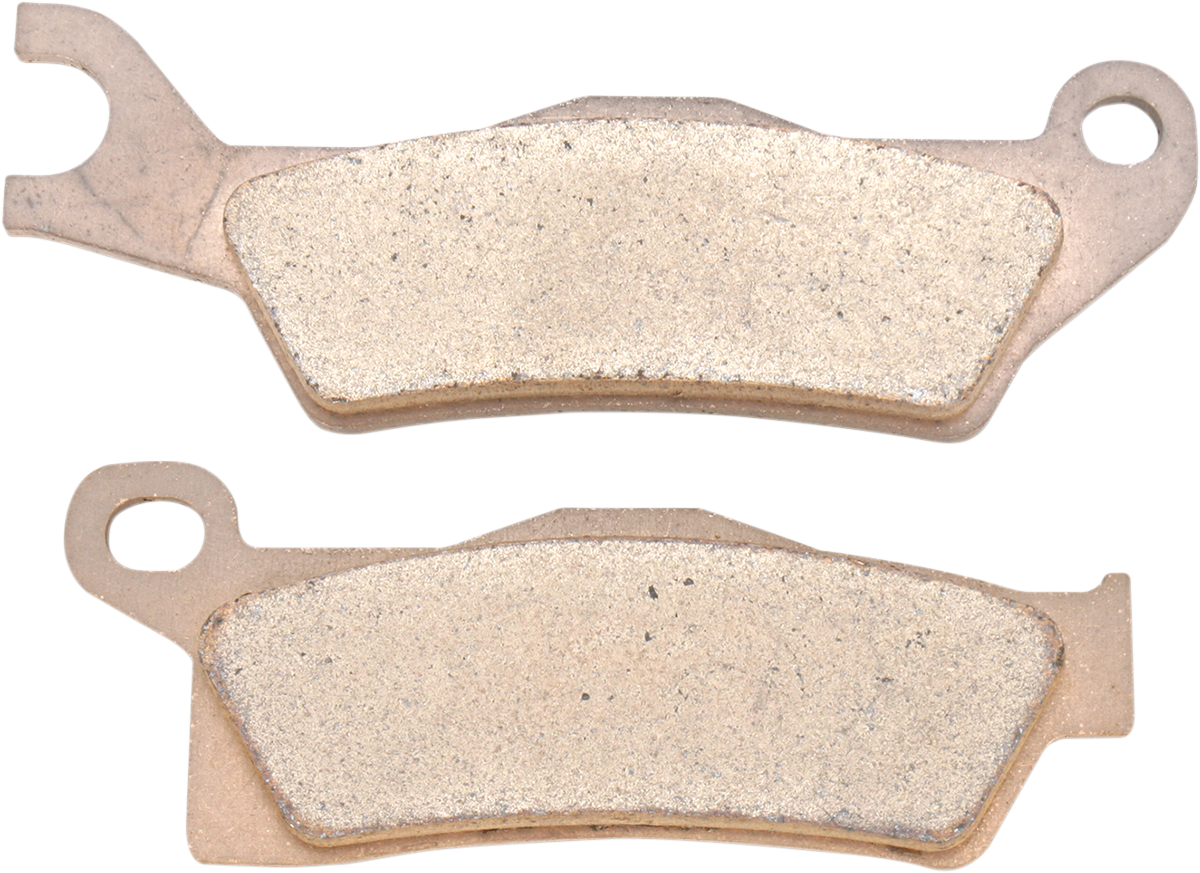

DP Brakes DP516 standard sintered copper alloy brake pads for Can-Am Outlander and Renegade ATV models (2009–2026). Engineered for high-tech ATV performance in all conditions. Aluminum oxide ceramic backplate keeps heat away from the caliper piston for fade-free performance. GG friction rated. Sold as a set of 2 pads.

Important: Caliper position (left vs. right) varies by model and year — verify your specific caliper side before ordering. See fitment list below for details.

Key Features

• Copper alloy sintered metal compound — outlasts organic and aramid pads
• Ceramic aluminum oxide backplate — keeps heat away from caliper piston and fluid
• Equal performance in wet and dry conditions
• GG friction rated; quiet and non-abrasive to most rotors
• Quick break-in period for maximum performance fast
• Pairs with DP Brakes rotors for the ultimate in braking performance
• Sold as a set of 2 pads

Specifications

• Brand: DP Brakes
• Part Number: DP516
• Series: Standard
• Type: Sintered Metal
• Material: Copper Alloy Sintered Metal
• Length: 3-3/4" / 4-19/64" (set includes two pad shapes)
• Width: 1-35/64" / 1-27/64"
• Thickness: 19/64"
• Mounting Position: Front & Rear (caliper side varies by model)
• Quantity: Set of 2 pads
• Riding Style: ATV
• SKU: 1721-1449

Fitment — Can-Am Outlander & Renegade

Caliper position shown per model. Verify left vs. right side for your specific year and trim before ordering.

Outlander 500 / 500 DPS / 500 EFI

• 2013–2014 Outlander 500 EFI — Front-right / Rear-right
• 2013–2015 Outlander 500 EFI DPS — Front-right
• 2013–2015 Outlander 500 EFI XT — Front-right / Rear-right
• 2023 Outlander 500 DPS 4x4 — Rear-left
• 2023 Outlander 500 4x2 / 4x4 — Rear-left
• 2024–2026 Outlander 500 — Front-right / Rear-right (2024–2026); Front-right / Rear-right (2025–2026 for DPS)
• 2024–2026 Outlander 500 2WD — Front-right / Rear-right (2025–2026)
• 2024–2026 Outlander Max 500 DPS — Front / Rear

Outlander 650 / 650 EFI

• 2013–2016 Outlander 650 EFI / EFI DPS / EFI XT — Front-right / Rear-right
• 2013–2016 Outlander Max 650 EFI / EFI DPS / EFI XT — Front-right / Rear-right
• 2016 Outlander 650 XT 4x4 — Front-right / Rear-right
• 2017–2020 Outlander 650 / 650 XT — Front-right / Rear-right
• 2017–2021 Outlander Max 650 DPS / 650 XT — Front-right / Rear-right
• 2019–2025 Outlander Max 650 6X6 DPS — Front-right / Rear-right

Outlander 700

• 2023–2026 Outlander 700 / 700 DPS / 700 XT / 700 X mr — Front / Rear
• 2023 Outlander Max 700 DPS 4x4 / Max 700 XT 4x4 — Front / Rear
• 2024–2026 Outlander Max 700 DPS / Max 700 XT — Front / Rear

Outlander 800R / 800R EFI

• 2012–2015 Outlander 800R EFI / 800R EFI XT — Front-right / Rear-right
• 2013–2014 Outlander Max 800R EFI XT / XT-P — Front-right / Rear-right

Outlander 850

• 2016–2026 Outlander 850 DPS / 850 XT — Front / Rear
• 2016–2024 Outlander 850 XT-P — Front / Rear
• 2016–2026 Outlander Max 850 XT — Front-right / Rear-right
• 2016–2024 Outlander Max 850 XT-P — Front-right / Rear-right
• 2019–2025 Outlander 850 — Front / Rear
• 2022–2024 Outlander 850 Hunting Edition — Front / Rear
• 2023–2026 Outlander 850 X mr — Front / Rear
• 2023–2026 Outlander Max 850 DPS — Front-right / Rear-right
• 2026 Outlander Max 850 6X6 DPS — Front / Rear

Outlander 1000 / 1000R

• 2012 Outlander 1000 EFI
• 2012–2016 Outlander 1000 EFI XT — Front-left / Rear-left (2016)
• 2013–2016 Outlander 1000 EFI DPS — Front-left / Rear-left (2015–2016)
• 2013–2016 Outlander 1000 EFI XT-P — Front-left / Rear-left (2016)
• 2015–2016 Outlander 1000 6x6 XT — Front-left
• 2013–2022 Outlander 1000 X mr — Front-left / Rear-left (2015–2022)
• 2017–2019 Outlander 1000 DPS — Front-left / Rear-left
• 2017–2022 Outlander 1000 XT / 1000 XT-P — Front-left / Rear-left
• 2018–2022 Outlander 1000 X xc — Front-left / Rear-left
• 2023–2025 Outlander 1000R XT / XT-P / X mr / X xc (2023–2024) — Front-left / Rear-left
• 2017–2022 Outlander Max 1000 XT / Max 1000 XT-P / Max 1000 Limited — Front / Rear
• 2023–2026 Outlander Max 1000R XT / XT-P / Limited — Front / Rear
• 2025–2026 Outlander Max 1000R DPS — Front / Rear

Outlander PRO / Outlander L

• 2015–2016 Outlander L 450 / L Max 450 — Front-left / Rear-left
• 2015 Outlander L 500 / L Max 500 — Front-left / Rear-left
• 2016 Outlander L 570 / L Max 570 — Front-right / Rear-right
• 2023 Outlander Pro XU HD5 — Front / Rear
• 2024 Outlander PRO HD5 Hunting Edition — Front / Rear
• 2024–2026 Outlander PRO HD5 XU / PRO HD7 XU / PRO HD7 Hunting Edition — Front / Rear
• 2023–2026 Outlander PRO HD5 / PRO HD7 — Front / Rear
• 2025–2026 Outlander PRO Max HD7 XU / PRO Max HD7 Hunting Edition — Front / Rear
• 2020–2024 Outlander Max 450 6X6 DPS — Front-right / Rear-right
• 2019 Outlander Max 450 DPS 6x6 — Front-right / Rear-right

Renegade

• 2009–2015 Renegade 500 — Front-right
• 2012–2015 Renegade 800R / 1000 — Front-right / Rear-right
• 2012 Renegade 800R EFI X xc / 1000 EFI X xc — Front-right / Rear-right
• 2013–2015 Renegade 800R X xc — Front-right / Rear-right
• 2013–2021 Renegade 1000 X xc — Front-right / Rear-right
• 2016–2020 Renegade 570 / 850 — Front-right / Rear-right
• 2022–2026 Renegade 650 X mr — Front / Rear
• 2022–2026 Renegade 1000R X xc — Front-right / Rear-right (2024–2026)
• 2023–2025 Renegade 650 — Front / Rear
• 2023–2026 Renegade 1000R X mr — Front-right / Rear-right

Caliper side (left vs. right) varies by model — confirm before ordering. Sold as a set of 2 pads. Pairs with DP Brakes rotors for best results.
