LEGEND SUSPENSION  |  SKU: 1310-2314

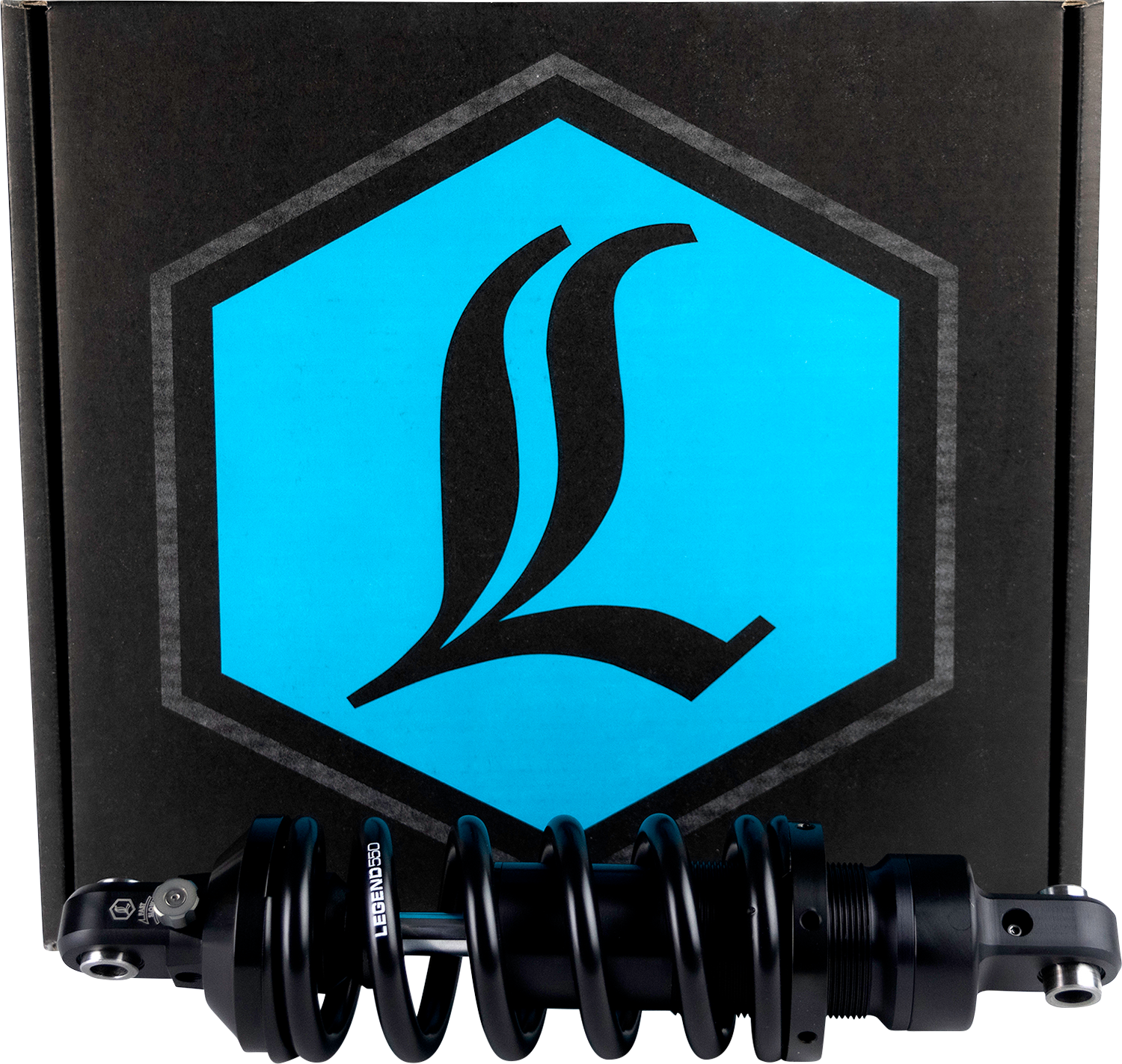

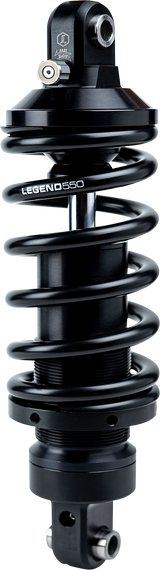

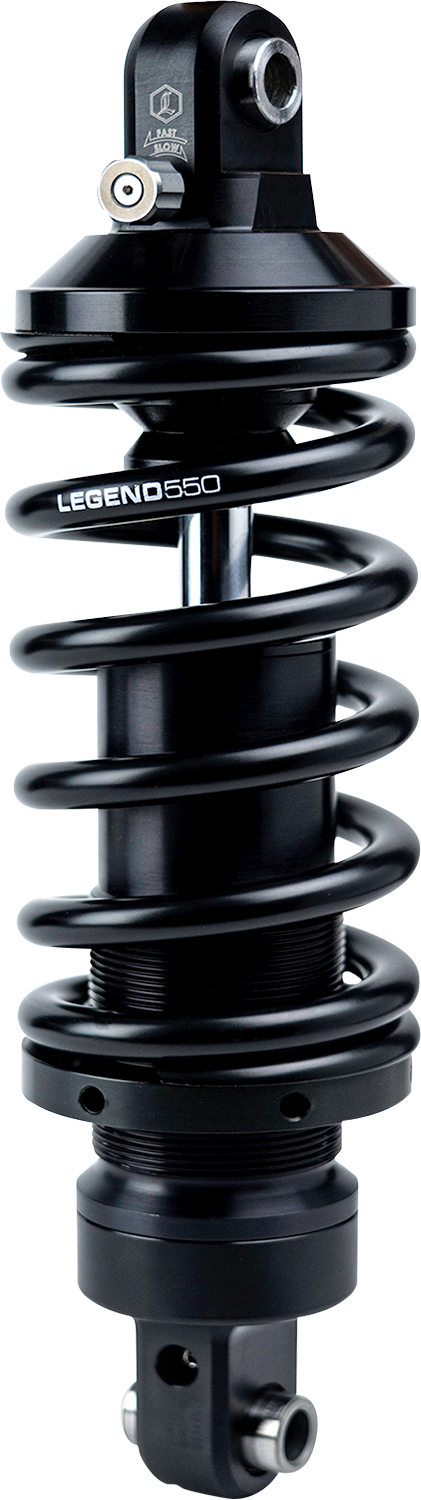

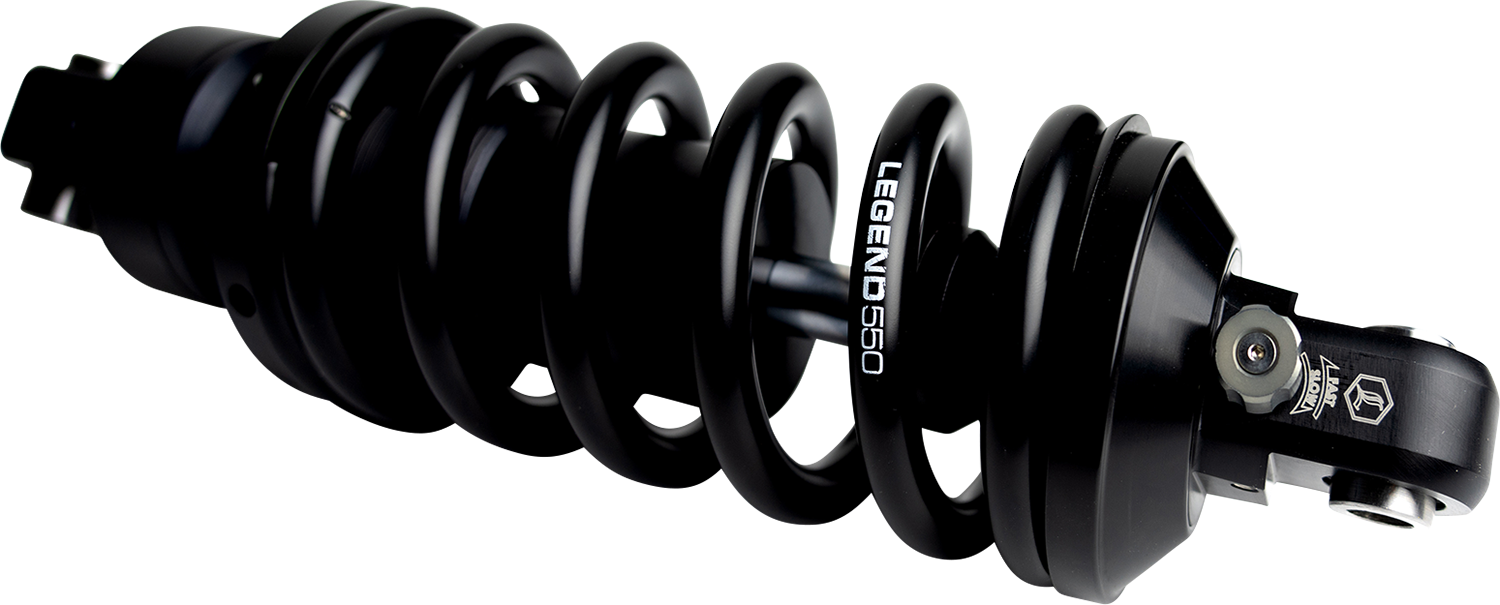

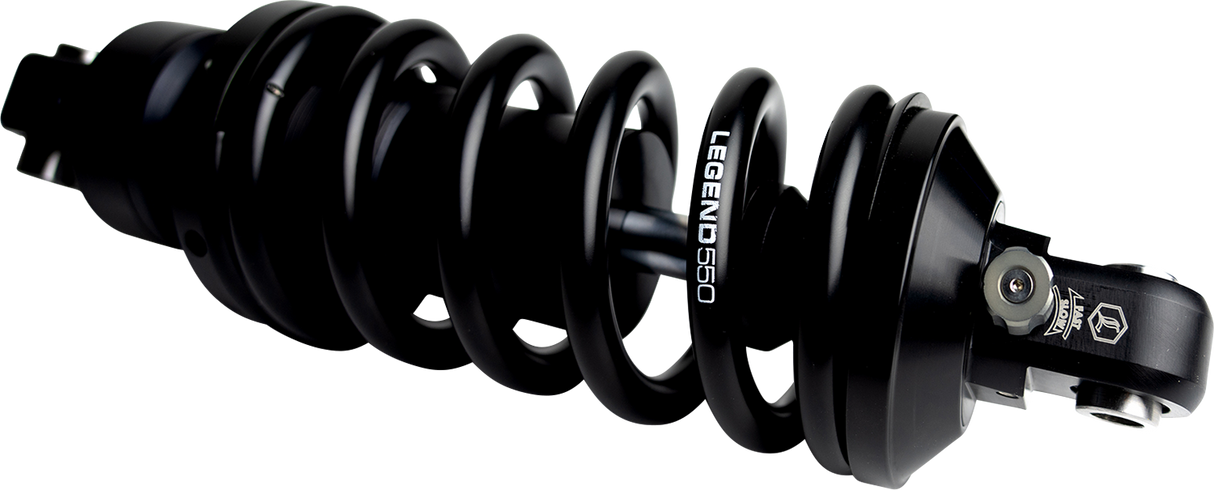

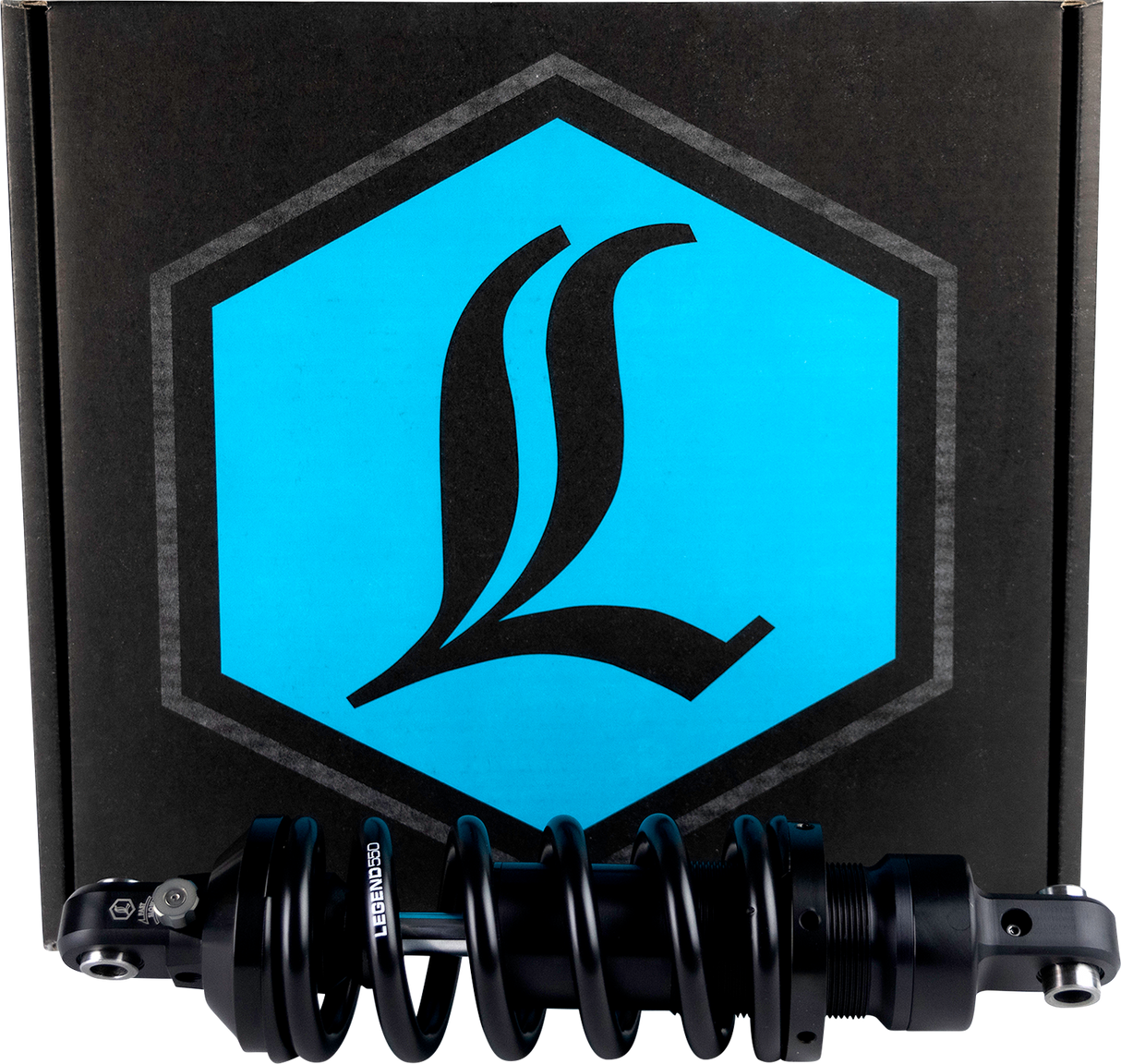

LEGEND SUSPENSION REVO-A Shock - 12.5" - Heavy Duty 1310-2314

Regular price $1,06995

Delivery and Shipping

Most items ship for free to the continental United States

LEGEND SUSPENSION REVO-A Shock - 12.5" - Heavy Duty 1310-2314

Description

REVO-A Shock - 12.5" - Heavy Duty
All new Revo-A coil design for the M-Eight Softail, Available in 12.5", 13", and 13.5", standard or heavy-duty applications, Revo-A coil spring provides superior ride comfort, improved performance, and increased resistance to bottoming for all day comfort , Provides optimum rebound performance that can be fine-tuned for any given rider weight, personal ride preference, or personal riding style, Adjustable preload for rider set up, also allows for minimal pre-load adjustment when changing between rider's weights and loads, Seven external knob adjustments allow fine-tuning of rebound utilizing needle valve technology to adapt to your riding style, Low friction sleeve bearings both top and bottom for ease of installation, this also allows the shock to float in its mount and avoid shock bind, Hard anodized, machined billet aluminum 46 mm mono tube utilizes a lightweight high flow piston design for improved fluid flow resulting in unmatched handling and bike control, Hard chromed shaft is 14% larger for increased strength, High quality chrome-silicon spring for consistent spring rate for the life of the motorcycle, Internal floating nitrogen piston ensures consistent damping performance, Deflective disc valving self-adjusts to frequency and ensures controlled performance, Legend's durable and low friction sealing system and sliding bearings provide improved performance and feel, Available in Black Type III hard coat anodize, Easy installation and adjustment replacing the stock shock and mounts with original OEM hardware, Sold as Mono Shock (1 shock only), Preload wrench included, Designed for optimum performance with the Legend Axeo front suspension, Lifetime Warranty, Made by hand in Sturgis, SD, USA, P65 WARNING: Cancer and Reproductive Harm.


Specifications

  • Brand: Legend Suspension
  • Product: coilover monotube shock absorber
  • Mounting position: rear
  • Material: billet aluminum
  • Color/finish: black / anodized
  • Riding style: Street
  • Duty: Heavy Duty
  • Extended Length: 12.50"
  • Reservoir Location: Internal
  • Adjustment Type: Adjustable Rebound Damping
  • Model: Revo-A
  • Part number: 1310-2314
  • Supplier SKU: 1310-2314
  • Units: each

Harley-Davidson Fitment

MakeYearsModelDetails
Harley-Davidson2018–2024FLFBS Fat Boy 114
Harley-Davidson2018–2024FLHCS Heritage Classic 114
Harley-Davidson2022–2024FXLRS Low Rider S 117Softail
Harley-Davidson2022–2024FXLRST Low Rider ST 117Softail
Harley-Davidson2020–2024FXST Softail Standard 107
Harley-Davidson2018–2021, 2023FXFBS Fat Bob 114
Harley-Davidson2022FXBBS Street Bob 114
Harley-Davidson2018–2021FLHC Heritage Classic 107
Harley-Davidson2018–2021FLSB Sport Glide 107
Harley-Davidson2018–2021FLSL Softail Slim 107
Harley-Davidson2020–2021FXLRS Low Rider S 114Softail
Harley-Davidson2018–2020FLDE Deluxe 107
Harley-Davidson2018–2020FXBB Street Bob 107
Harley-Davidson2018–2020FXBRS Breakout 114
Harley-Davidson2018–2020FXLR Low Rider 107
Harley-Davidson2018–2019FLFB Fat Boy 107
Harley-Davidson2018–2019FXBR Breakout 107
Harley-Davidson2018–2019FXFB Fat Bob 107

Please confirm fitment for your specific model year.
