Explore more for less
Built for outdoor work, this track system makes the most of 3-seater side-by-sides (400 to 700 CC). It provides the right traction and flotation for tough weather days at the ranch and during hunting season.
CAMSO UTV X4S Track System 7522-03-1051 is backordered and will ship as soon as it is back in stock.

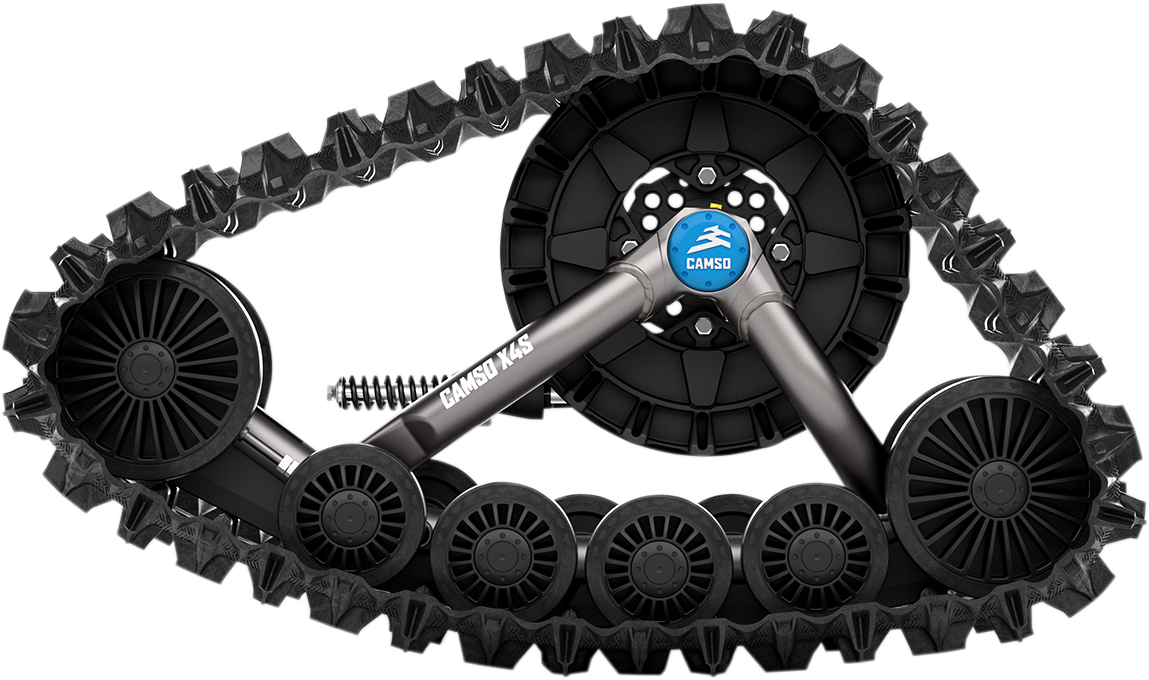

CAMSO UTV X4S Track System 7522-03-1051
Couldn't load pickup availability
Requirements for FREE shipping Camso tracks
Requirements for FREE shipping Camso tracks
Please click HERE to read about special shipping instructions.
CAMSO UTV X4S Track System 7522-03-1051
Description
Description
UTV X4S Track System

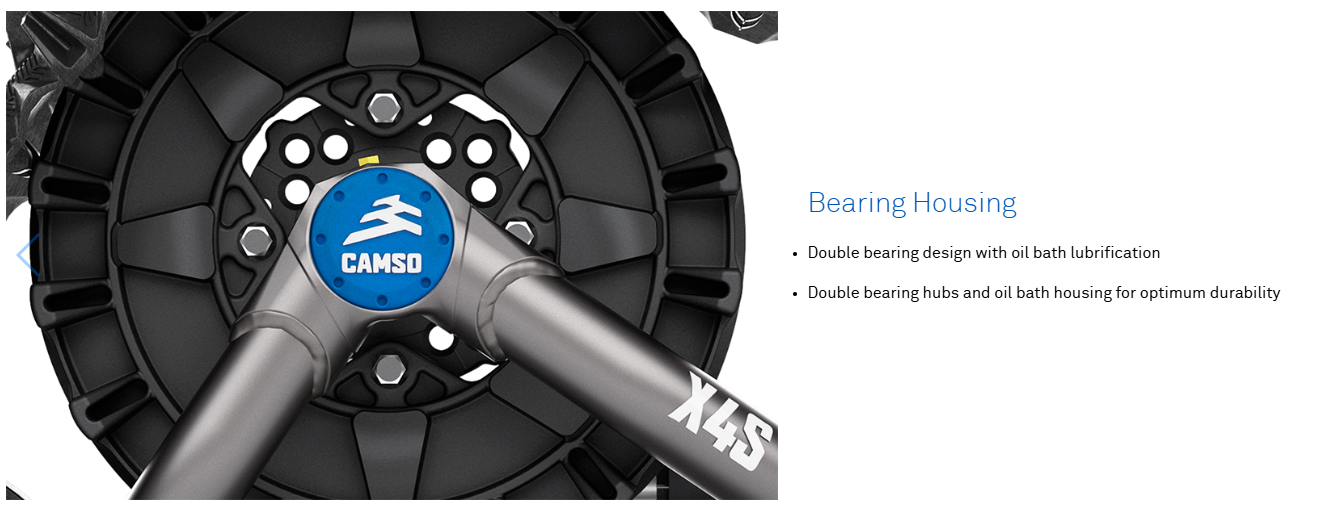

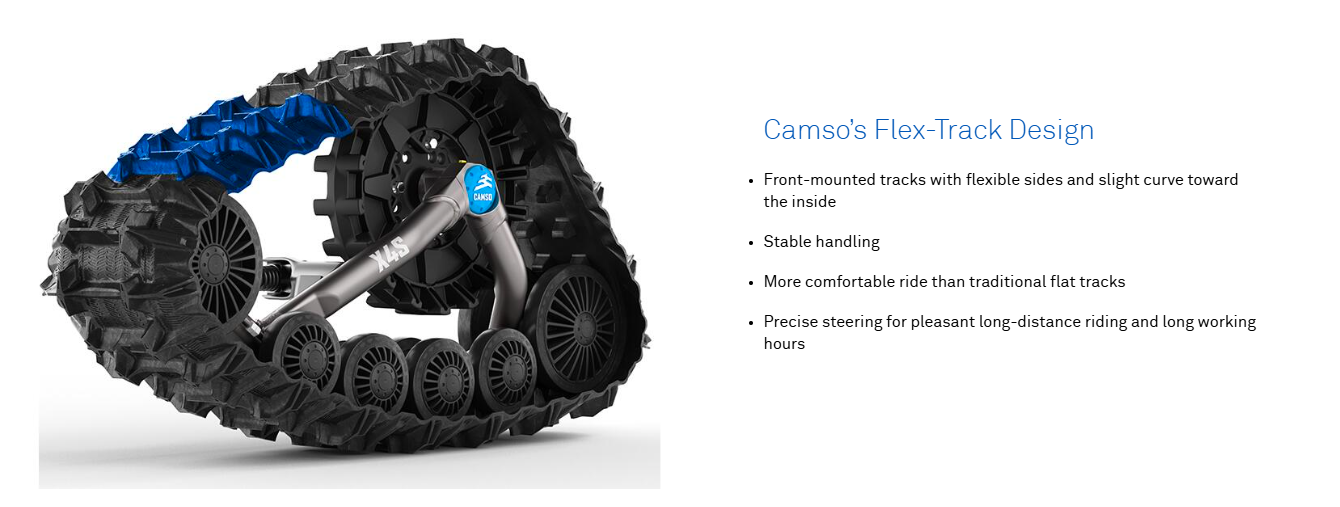

Versatile UTV track system, For small to mid-size side-by-side vehicles with 3 seats or less, Double bearing hubs and oil bath housing for optimum durability, Bolted idler and midroller wheels feature interchangeable double bearings for increased durability and easier maintenance, Front-mounted tracks with flexible sides and slight curve toward the inside for a stable handling and a more comfortable ride than traditional tracks
Specifications
Specifications
| System | Camso X4S |
|---|---|
| Vehicle size | 400 cc to 700 cc |
| Offset (length) | Front: 24 in. (609 mm) Rear: 27 in. (685 mm) |
| Offset (width) | 6 in. (153 mm) |
| Ground clearance | Front height: 15 3/8 in. (390 mm) Rear height: 14 5/8 in. (372 mm) |
| Weight (average) | Front: 72.6 lb (33kg) Rear: 79.4 lb (36 kg) |
| Height | Front: 23.8 in. (604 mm) Rear: 23.2 in. (590 mm) |
| Length | Front: 40 in. (1016 mm) Rear: 42.5 in. (1081 mm) |
| Width | Front: 11.5 in. (292 mm) Rear: 12.5 in. (318 mm) |
| Rubber Track | |
| Width | Front: 11.5 in. (292 mm) Rear: 12.5 in. (318 mm) |
| Length | Front: 93.4 in. (2372 mm) Rear: 98.5 in. (2507 mm) |
| Lug height | Front: 1.25 in. (32 mm) Rear: 1.25 in. (32 mm) |
| Rubber track | Front: Flex Rear: Flat |
| Performance | |
| Ground surface | 2000 sq. in. (1.30 m²) |
| Maintained speed (average) | ⅔ |
| Specification | |
| Drive type | Internal drive |

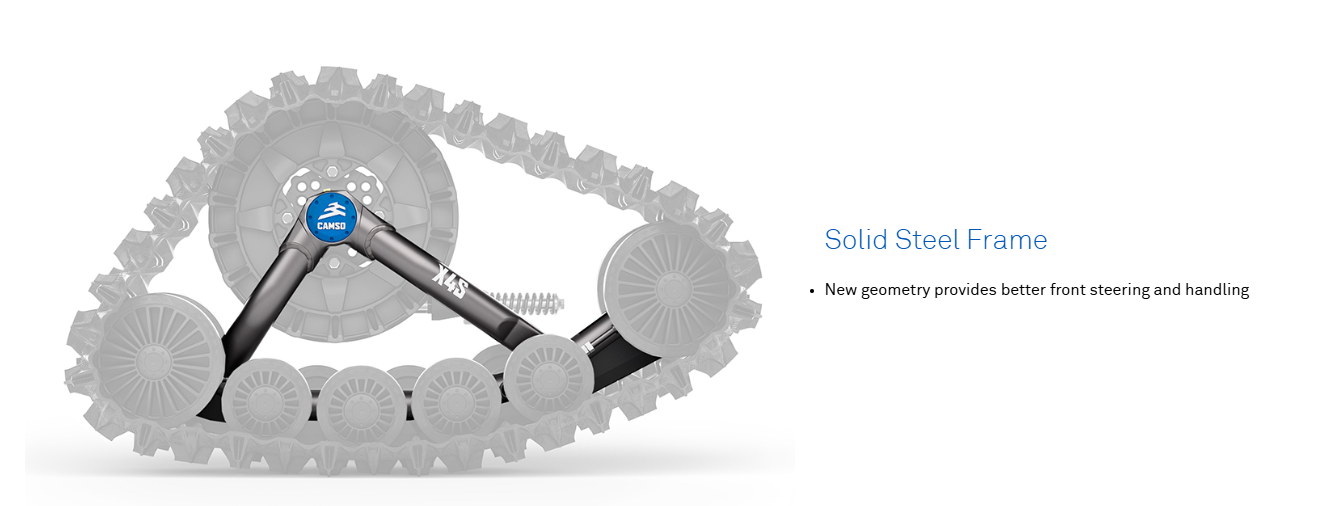

| Frame | Carbon steel |

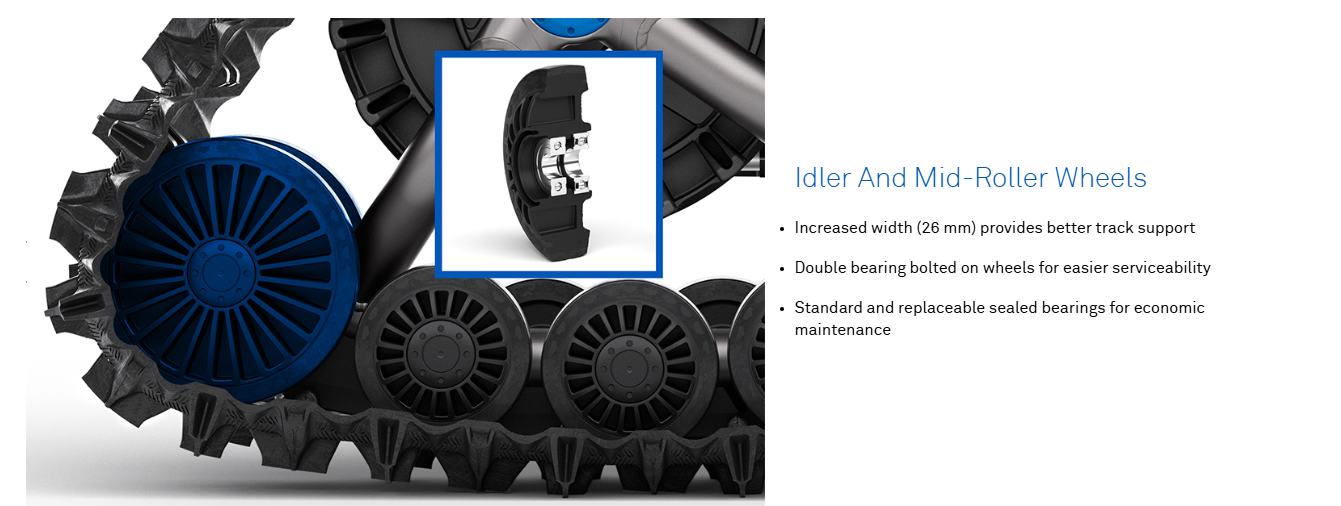

| Idler & mid-roller Wheels/Tire | 134 & 202 mm double bearings wheel. Standard and replacable sealed bearings. Elastomer outer band. Bladder-type wheel cap. |
| Hub and bearin.g | Cast steel multi-bolt (4) pattern hub. |
| Tandem & suspension | Mono front tandem on pivot point with bolted wheels. |
| Maintenance | |
| installation time (average) | 2 hrs |
| Subsequent | 1 hr |
