WARN R35 Winch - Wire Rope - 50' 110035 is backordered and will ship as soon as it is back in stock.
WARN | SKU:
4505-1204
10% off
WARN R35 Winch - Wire Rope - 50' 110035
Sale price
$28799
Regular price
$31999
Unit price
/
Unavailable
Shipping calculated at checkout.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Most items ship for free to the continental United States
WARN R35 Winch - Wire Rope - 50' 110035
Sale price
$28799
Regular price
$31999
Unit price
/
Unavailable
WARN R35 Winch - Wire Rope - 50' 110035
Description
Description

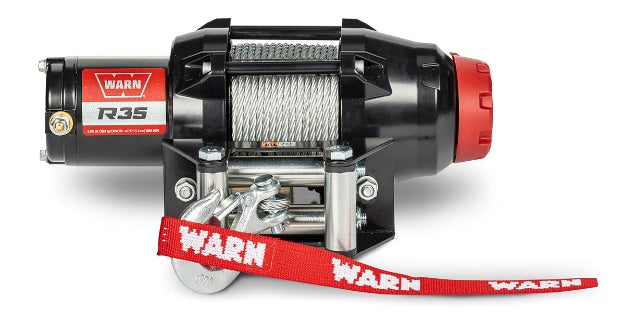

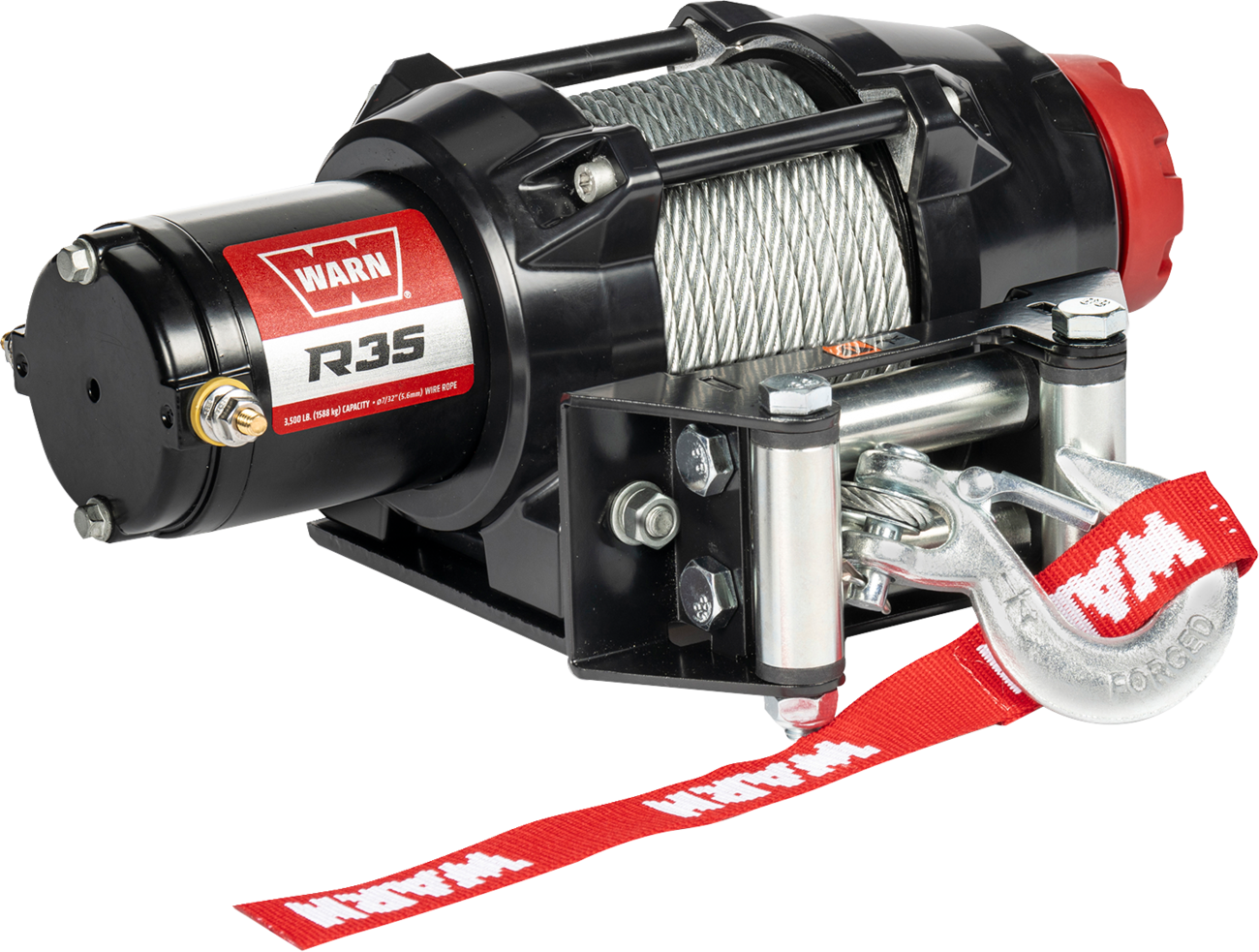

R35 Winch - Wire Rope - 50'
3,500 lb. capacity, equipped with 50’ of 7/32” steel rope, roller fairlead, handlebar-mounted rocker switch, and dash-mounted control switch.
Features:
- Affordable performance is designed for first-time winch users or casual riders who need reliable recovery
- Durable all-metal gear housing and a sleek, compact profile design to complement the machine
- Rigorously tested and validated to meet or exceed Warn's leading durability and performance standards
- R-series winch has 50 feet of rope with a standard hook
- Fairlead and fairlead plate
- Handlebar switch and dash-mounted rocker switch
- Remote socket harness
- External, remotely mounted contactor and wiring kit
- Also includes manual, hardware kit, and a Warn sticker
- Zinc plated fasteners
Specifications:
| Rated line pull (single line) | R35, R35-S, 3,500lbs (1588kg) |
| Motor: | 12V DC permanent magnet |
| Sealing: | IP67 rated waterproof |
| Gear train: | R35, R35-S, R45, R45-S, R60-S: 3-stage planetary |
| Fasteners: | Zinc plated |
| Rope: | R25, R35: 50’ x 3/16” (15m x 4.8mm) steel |
| Hook: | Zinc plated |
| Fairlead: | R25, R35, R45: roller fairlead |
| Primary Controls | R35, R35-S: handle-bar mounted rocker switch; dash-mounted rocker switch; remote socket harness |
| Remote control: | R25, R25-S, R35, R35-S: sold separately |
| Brake: | R35, R35-S, R45, R-45-S, R60-S: mechanical brake |
| Warranty: | 5 years mechanical, 3 years electrical |
| Dimensions: | R35, R35-S: length: 12.3” (312mm), height: 4.7” (120mm), width: 4.6” (117mm) |
| Mounting Bolt Pattern: | R25, R25-S, R35, R35-S: 3” x 4.9” (76.2mm x 167.4mm) |
| Product Name | Winch |
| Type | Wire Rope |
| Color/Finish | Black / Red |
| Model | R-Series |
| Load Capacity | 3500 lb |
| Units | Each |
| Riding Style | ATV / Snow / UTV |
